Belt Conveyor
Henan Tianzhong is a leading brand specializing in the manufacturing of dewatering screw press, solid-liquid separators, vegetable pulping machines, screw conveyors, and trash can lifters, etc.We are an integrated solution provider of dehydration and reduction of waste material in various industries,R&D,production and sales of complete sets of fine filtration equipmenet.Choose our OEM/ODM services for a combination of speed and quality.Tianzhong Machinery,You First Option, Longlife Benefit!
Brief Description:

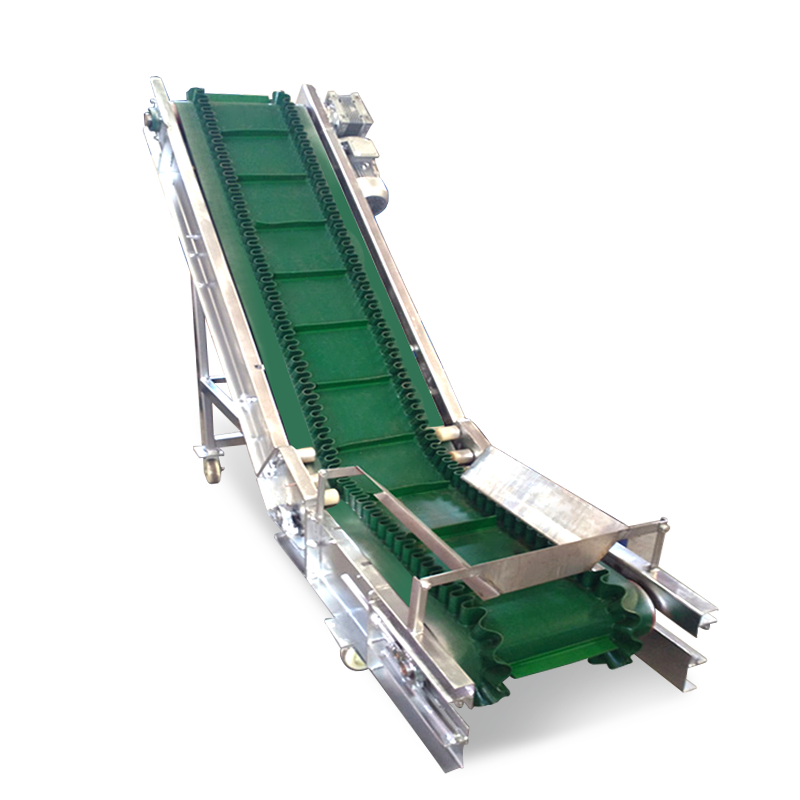

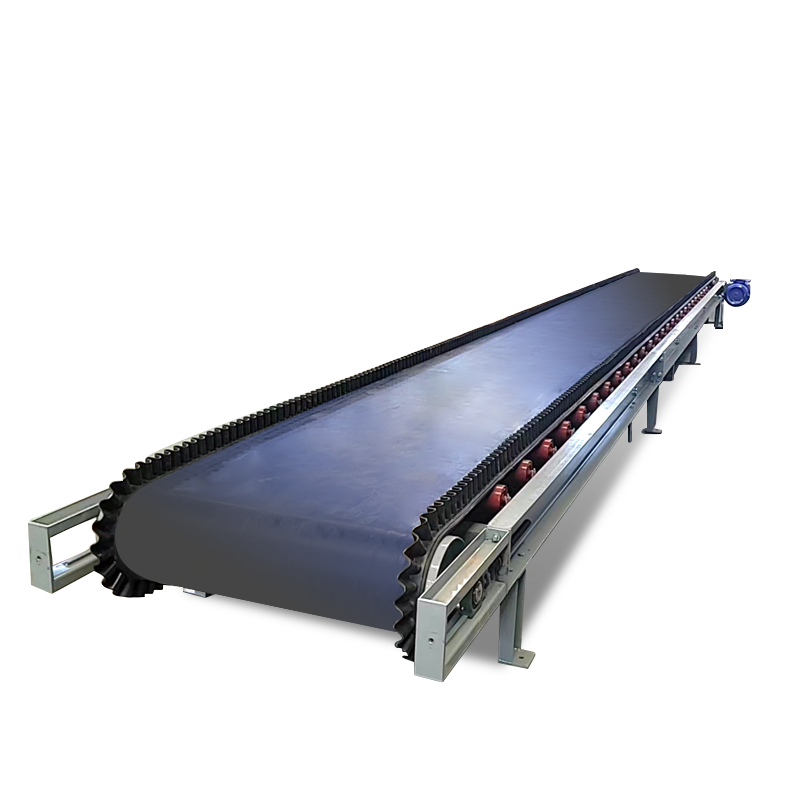

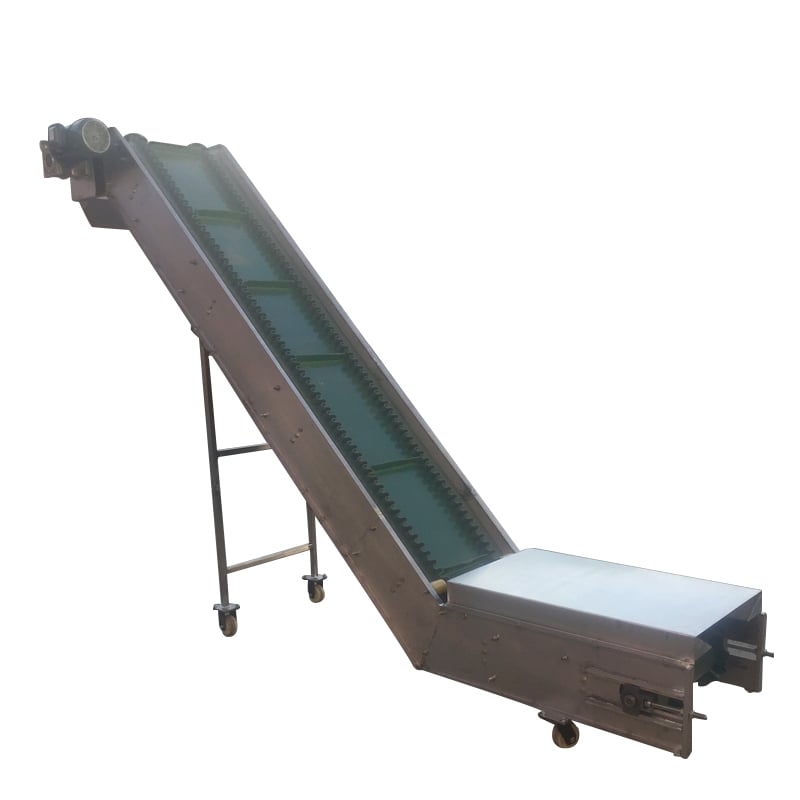

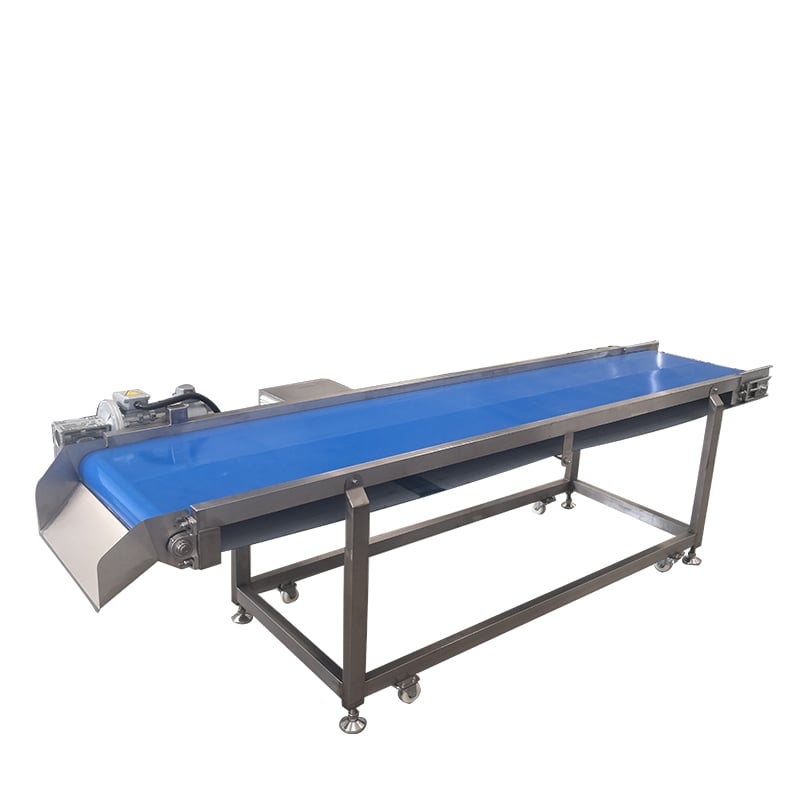

Belt Conveyor
Belt conveyor are ideal for handling materials with large and varying particle sizes and are capable of handling a wide range of bulk materials from very fine to large lump sizes.Belt conveyors can be configured to fit almost any application.They can transport material horizontally,on slopes,or a combination of both.They require less power to operate than other types of conveyors.
Properties
- Abrasion resistant belts- to reduce wear and increase durability.
- Solid structural frames and supports- to ensure the rigidity of the system.
- Highly durable drive units- to operate in adverse conditions.
| Belt width | Sidewall height | Cleat pitch | Slant angle | |||||
| 30° | 40° | 50° | 60° | 70° | 90° | |||
| mm | mm | mm | Capacity(m³/h) Speed of belt=1m/s | |||||
| 500 | 120 | 252 | 52 | 40 | 32 | 26 | 21 | - |
| 160 | 378 | 65 | 52 | 42 | 34 | 28 | 17 | |
| 650 | 120 | 252 | 78 | 60 | 48 | 39 | 32 | - |
| 160 | 378 | 73 | 56 | 45 | 36 | 30 | - | |
| 800 | 120 | 129 | 99 | 76 | 60 | 49 | 40 | - |
| 200 | 378 | 148 | 114 | 91 | 74 | 61 | 37 | |
| 1000 | 160 | 378 | 129 | 99 | 79 | 64 | 52 | |
| 240 | 504 | 229 | 176 | 141 | - | - | - | |
| 1200 | 160 | 252 | 223 | 180 | 144 | 117 | 96 | 59 |
| 240 | 378 | 342 | 280 | 224 | 183 | 149 | 91 | |
| 1400 | 200 | 252 | 299 | 231 | 185 | 151 | 123 | 75 |
| 240 | 378 | 422 | 345 | 276 | 225 | 184 | 113 | |
Applicaton:
Belt Conveyor is very well suited for a broad range of free flowing products in the food, agriculture, pharmaceutical, cosmetic, chemical industry, such as snack foods, frozen foods, vegetales, fruits, confectionary. Chemicals and other granules.
