Product Description

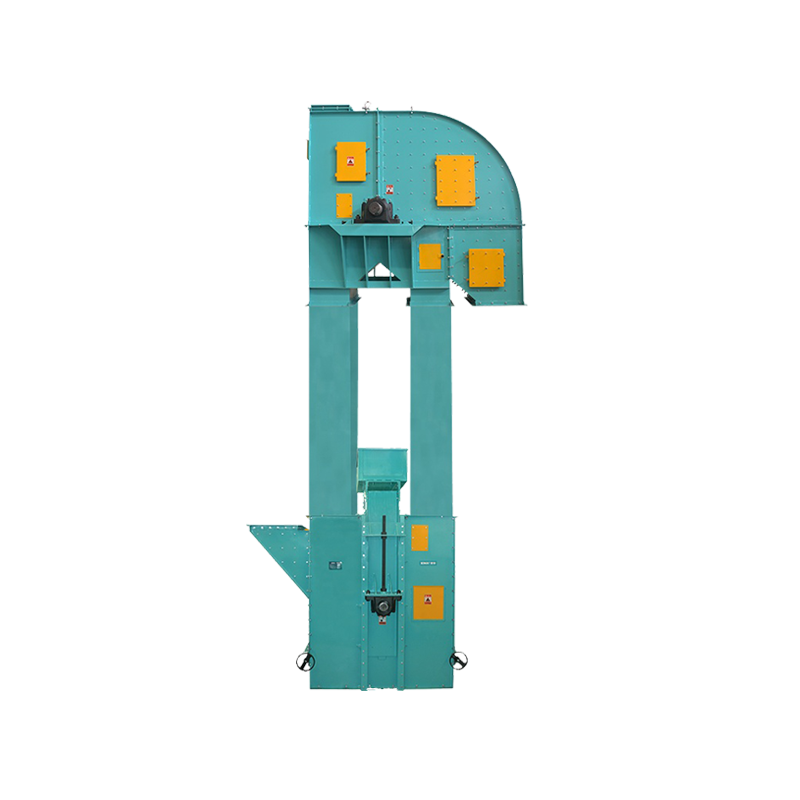

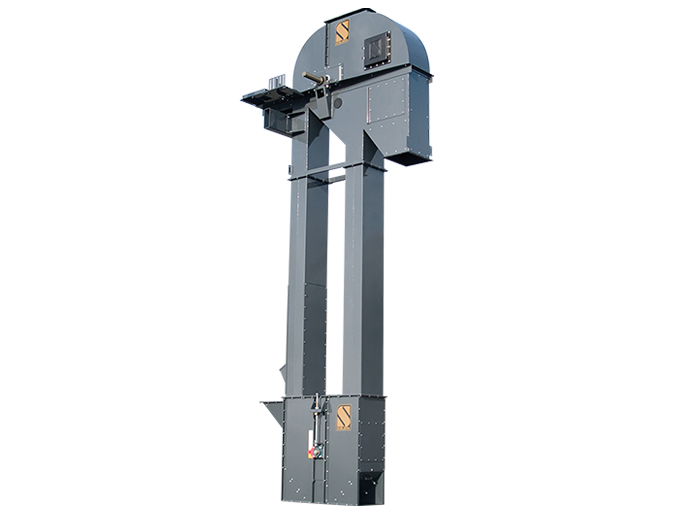

The TH Bucket Elevator is a type of vertical conveying equipment that is suitable for lifting materials from low to high.After the material is put into the hopper through a vibrating table ,the machine ascends automatically and continuously.The transmission capacity can be adjusted according to the transmission speed,which is highly flexible and can meet various needs.
We can provide various kinds of Bucket Elevator (lifting machine), pls choose the following which one is suitable for you?
-
TH Ring Chain Bucket Elevator
-
NE Plate Chain Bucket Elevator
-
TB Plate Chain bucket Elevator
-
TDG/THG efficient bucket elevator
-
TZD silo bucket elevator
1.This unit is a heavy-duty bulk material handling conveyor, designed for the transport of concrete,cement powder,and other similar materials using a bucket elevator lifting machine.
2.Z-Type food-grade stainless steel bucket elevator are highly efficient and saves on labor costs,quickly and evenly distributing materials.
3.This unit is a high-capacity,high-efficiency,and low-cost vertical lifting machine equipped with a chain-driven bucket elevator conveyor.
Technical parameter :
| Model | Hopper type | Capacity(m³/h) | Hopper | Chain | Rotate speed(m/s) | R/min | Conveyor（mm） | |||
| Capacity(L) | Bucket spacing(mm) | Round Steel Diameter × circular pitch(mm) | Breaking strength（KN） | |||||||
| TH160 | ZH | 19 | 1.2 | 350 | Φ12×45 | ≥170 | 1.3 | 62.5 | 20 | |
| SH | 30 | 1.9 | ||||||||
| TH250 | ZH | 30 | 3 | 450 | Φ18×64 | ≥320 | 1.2 | 46.8 | 25 | |
| SH | 48 | 4.8 | ||||||||
| TH315 | ZH | 35 | 37.5 | 512 | 1.4 | 42.5 | 35 | |||
| SH | 59 | 6 | ||||||||
| TH400 | ZH | 58 | 5.9 | 37.6 | 40 | |||||
| SH | 94 | 9.5 | ||||||||
| TH500 | ZH | 73 | 9.3 | 688 | Φ22×86 | ≥480 | 1.5 | 35.8 | 50 | |
| SH | 118 | 15 | ||||||||
| TH630 | ZH | 114 | 14.6 | 31.8 | 60 | |||||
| SH | 185 | 23.6 | ||||||||
| TH800 | ZH | 150 | 24 | 936 | Φ24×86 | ≥560 | 1.6 | 30.5 | 75 | |
| SH | 240 | 38 | ||||||||
| TH1000 | ZH | 240 | 38 | 936 | Φ24×86 | ≥560 | 1.6 | 30.5 | 85 | |
| SH | 360 | 6 | ||||||||
| TH1250 | ZH | 360 | 6 | 1001 | Φ28×92 | ≥660 | 1.6 | 28 | 100 | |
| SH | 540 | 95 | ||||||||
