Double-screw press
Henan Tianzhong is a leading brand specializing in the manufacturing of dewatering screw press, solid-liquid separators, vegetable pulping machines, screw conveyors, and trash can lifters, etc.We are an integrated solution provider of dehydration and reduction of waste material in various industries,R&D,production and sales of complete sets of fine filtration equipmenet.Choose our OEM/ODM services for a combination of speed and quality.Tianzhong Machinery,You First Option, Longlife Benefit!
Product Description

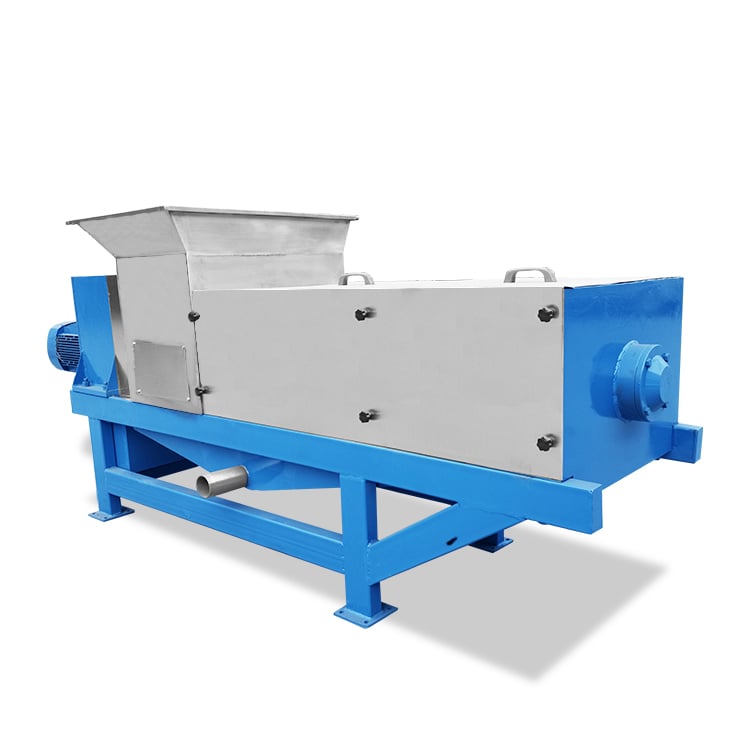

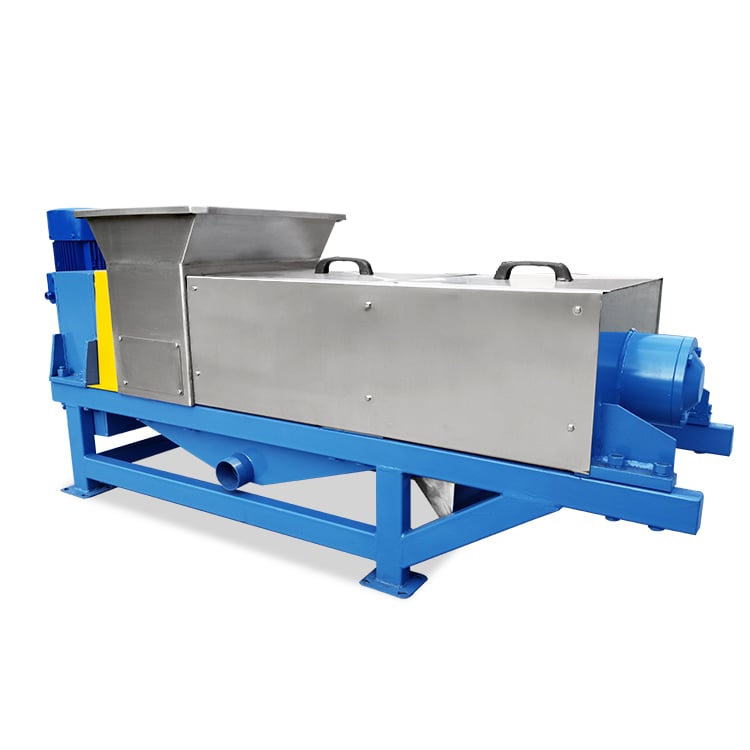

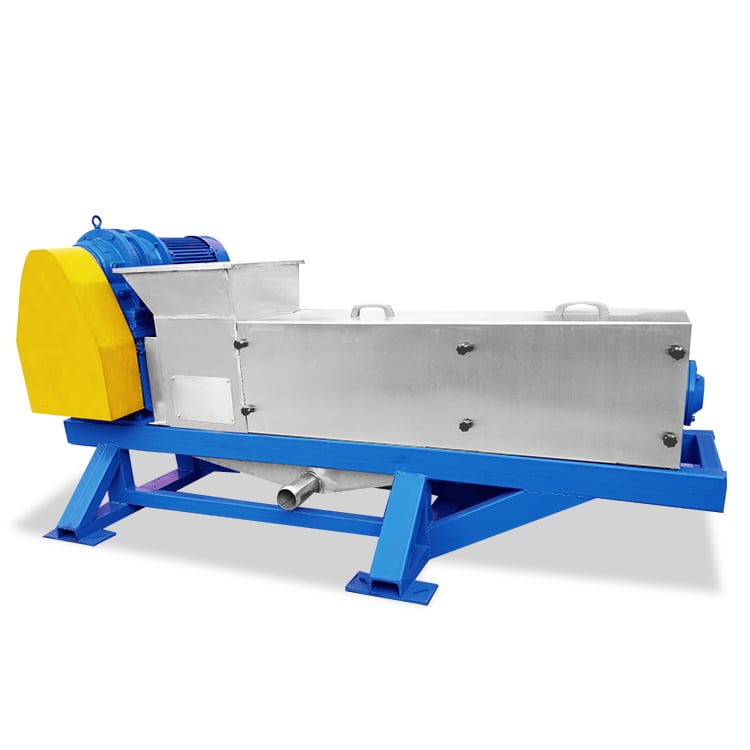

The double screw press machine is a movable,double-screw,continuous,
slow-speed extraction.the machine of low-speed and high-torque reaches 12rpm(revolutions per minute)after passed through the reducer and gearbox.the parts in contact with material within this unit are all made of high-quality alkali-resistant stainless steel.The front and back ends of the screw are squeezed respectively in the positive and negative directions,rotating to form a “twisted towel”.The solid-liquid separation effect is achieved by scree stress,and dryness of the slag discharge can be controlled and adjusted according to the requirements.
Technical Parameter
Model | TZ-0.5 | TZ-1.5 | TZ-3 | TZ-5 | TZ-10 | TZ-15 | |
Input capacity | 0.2-0.5t/h | 1-1.5t/h | 2-3t/h | 3-5t/h | 8-10t/h | 12-15t/h | |
Conveyor screw | Diameter | 180mm | 260mm | 350mm | 420mm | 500mm | 600mm |
Screw pitch | 100mm | 150mm | 200mm | 210mm | 280mm | 280mm | |
Rotating speed(r/min) | 5-15r/min | 5-15r/min | 5-15r/min | 5-15r/min | 5-15r/min | 5-15r/min | |
Press screw |
Diameter(mm) | 180mm | 260mm | 350mm | 420mm | 500mm | 600mm |
Rotating speed(r/min) | 5-15r/min | 5-15r/min | 5-15r/min | 5-15r/min | 5-15r/min | 5-15r/min | |
Hydraulic pump |
Pressure | Spring adjuster | Spring adjuster | Spring adjuster | ≤6Mpa | ≤6Mpa | ≤6Mpa |
Power(kw) | 1.1kw | 1.1kw | 1.1kw | ||||
Motor power | 3KW | 5.5KW | 7.5KW | 11KW | 18.5KW | 22KW | |
Screen diameter | 190mm | 270mm | 360mm | 430mm | 510mm | 610mm | |
External dimensions | 1800*550*920 | 2200*800*1200 | 3100*900*1300 | 3580*1000*1470 | 4200*1100*1650 | 4700*1100*1650 | |
LX W H(mm) | |||||||
Weight(t) | 450KG | 900KG | 1300KG | 2600KG | 3050KG | 4300KG | |
Reducer model | SAF67 | BWD3 | FAF87 | FAF97 | FAF107 | FAF127 |
Application of Double-screw press
- It is widely used in the juice extraction for a variety of fiber-rich fruits and vegetables.
- It is widely suitable for dewatering separation of fruit and vegetable waste, domestic waster in various industries.
- It is widely used in dewatering oil free and harmless treatment,such as household waste,a kitchen waste,food waste.
- It is widely used dewatering and squeezing of waste mateial,such as wine residue and grass residue.
