Brief Description

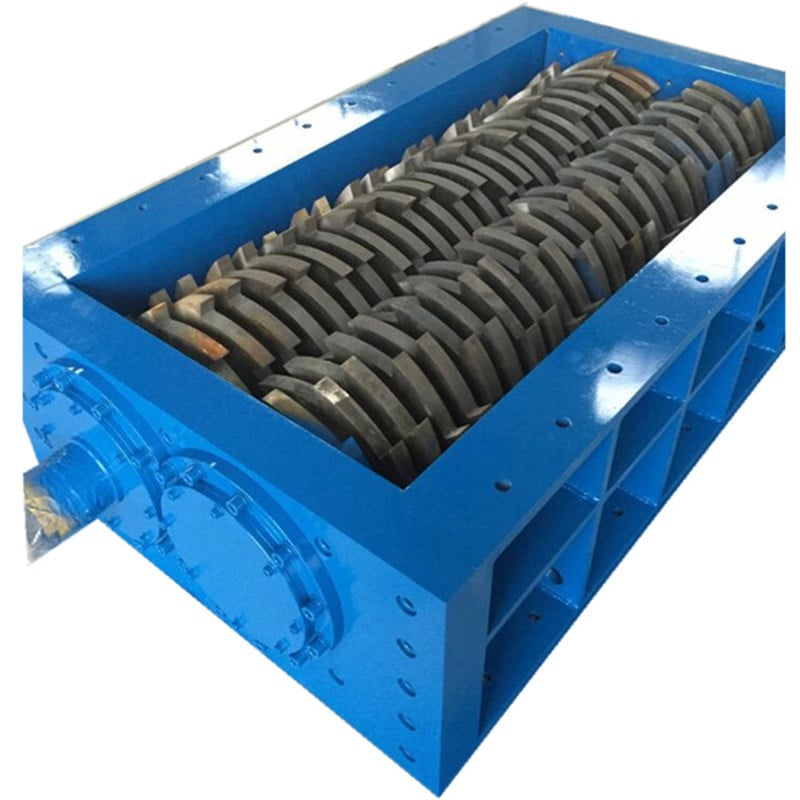

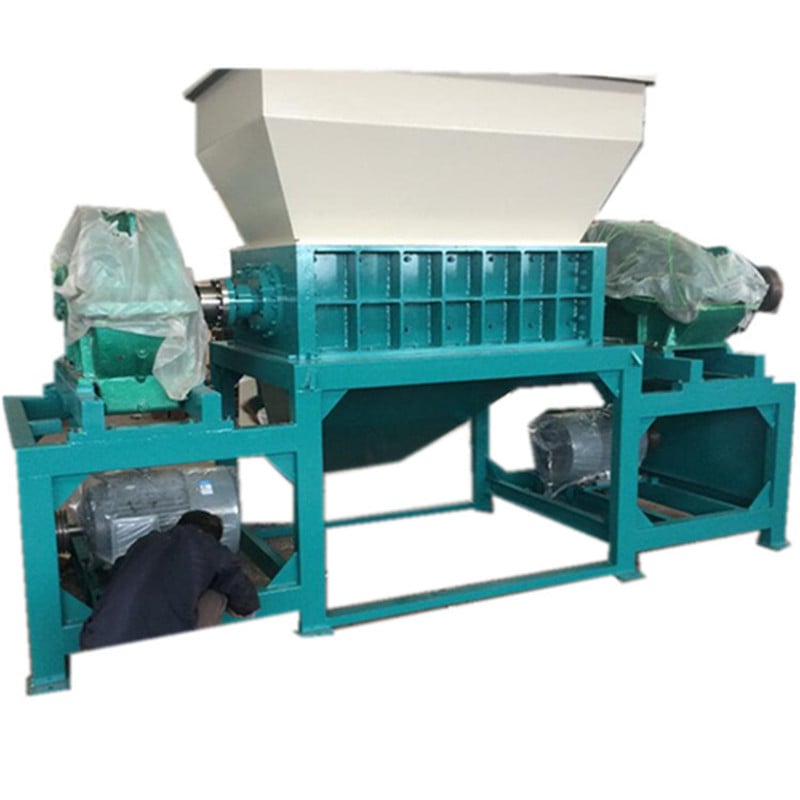

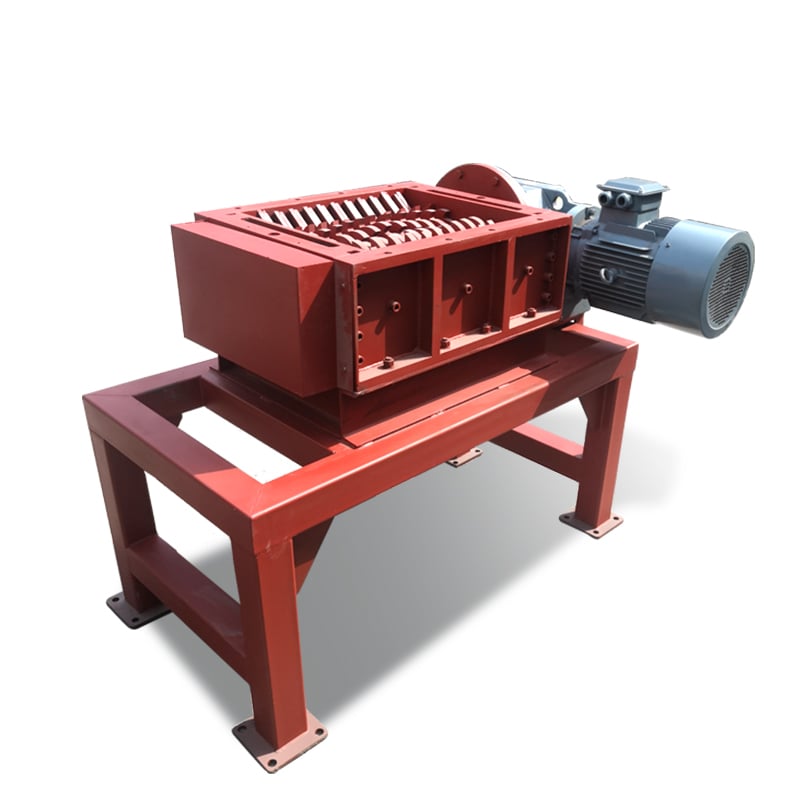

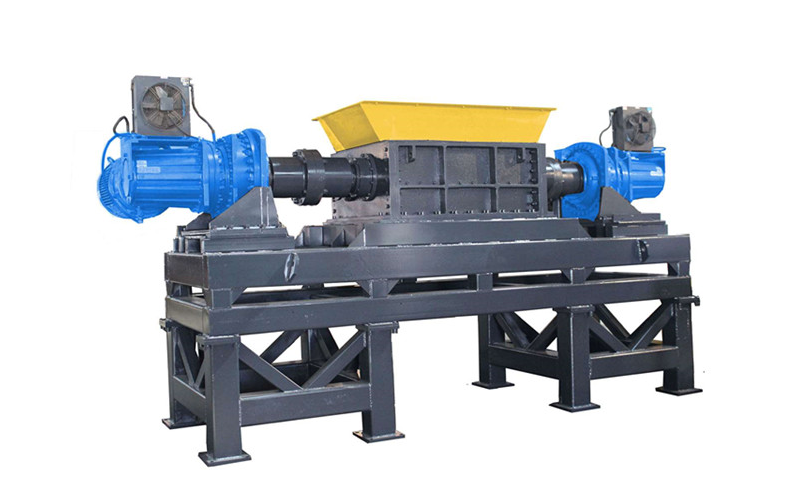

Double shaft crusher ,also as known as shear shredder.and can be used for crushing material and reducing the size of the materials through a combination of squeezing ,shearing,and tearing processes,which occur between the two sets of blades.

Applicability of this machine can be widely used for crushing materials such as wood, domestic waste,household waste, industrial waste,kitchen waste,plastic waste,and organic waste.

Double shaft crusher feature:

  • The blade material of this machine is 9Crsi and other components are fabricated from carbon steel.
  • Different mesh structure and different mesh diameter are used for shredding different material.
  • If the application in food processing can be tailored to incorporate a contact part fabricated from 304 stainless and blade is made of special stainless steel.
  • Blades:easy replacement blades or standard disk blades.

Technical Parameter:

Model PS-1.5 PS-3 PS-5 PS-800 PS-1000 PS-1200
Input capacity 1-2t/h 2-4t/h 4-6t/h 6-10t/h 8-12t/h 10-15t/h
      Blade     diameter(mm) 160mm 160mm 260mm 320mm 350mm 400mm
Power(kw) 4kw 5kw 15kw 18.5kw*2 30kw*2 45*2
Blade Thickness 14mm 14.5mm 16mm 20mm 25mm 30mm
Blade number 22 27 42 40 40 40
Rotating speed 20-25r/min 20-25r/min 20-25r/min 20-25r/min 20-25r/min 20-25r/min
   Knife box 300*330mm 400*330mm 700*500mm 800*700mm 1000*800mm 1200*900mm
External dimensions(mm) 1000*470*250 1160*550*450 1360*850*500 3800*1300*1850 4200*1400*1950 4400*1600*2100
Weight(t) 350kg 550kg 1600kg 3500kg 4500kg 5800kg
