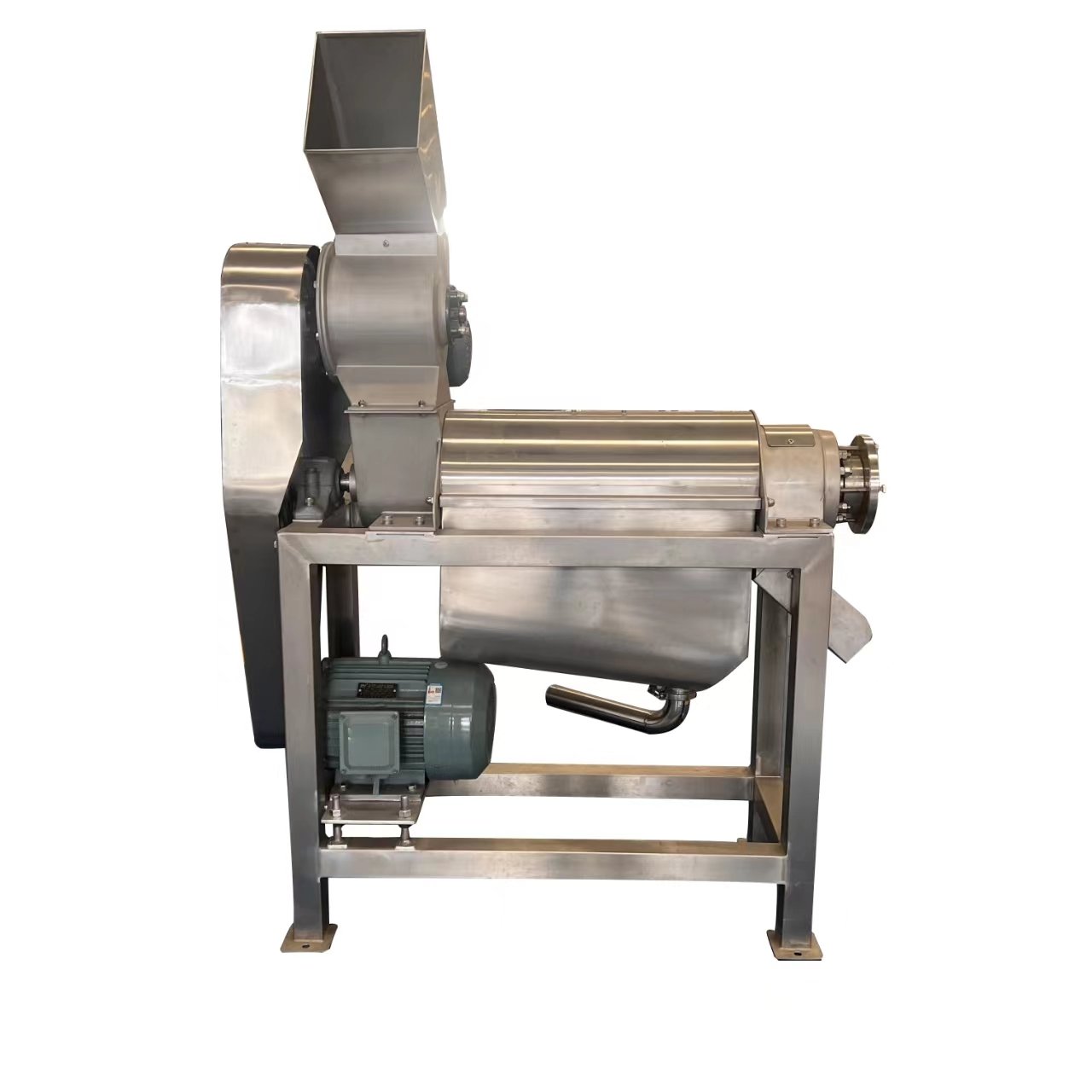

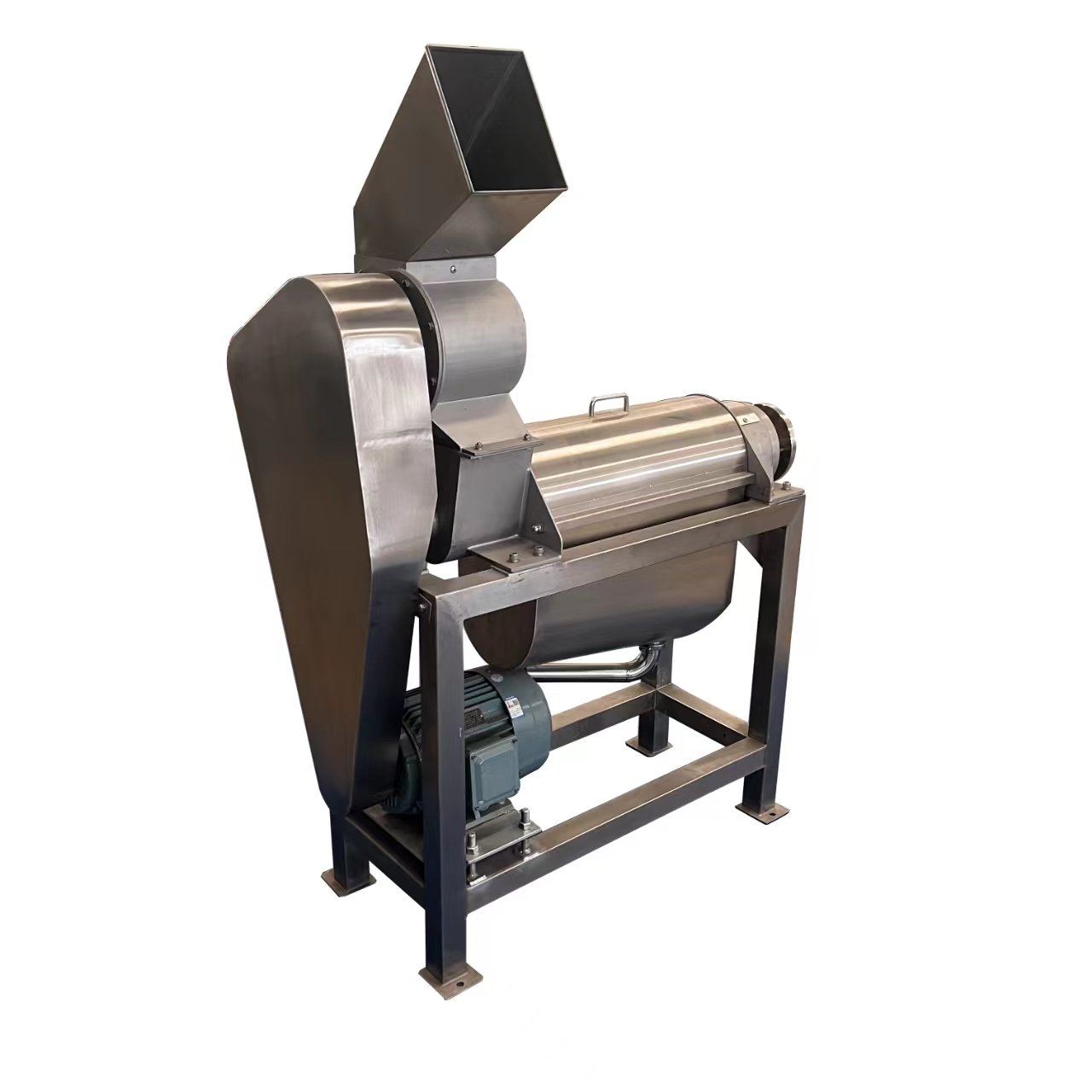

Fruit pulping machine
Fruit pulping machine
Fruit pulping machine
Fruit pulping machine

Fruit pulping machine

Henan Tianzhong is a leading brand specializing in the manufacturing of dewatering screw press, solid-liquid separators, vegetable pulping machines, screw conveyors, and trash can lifters, etc.We are an integrated solution provider of dehydration and reduction of waste material in various industries,R&D,production and sales of complete sets of fine filtration equipmenet.Choose our OEM/ODM services for a combination of speed and quality.Tianzhong Machinery,You First Option, Longlife Benefit!

Product Description

The DJ1 Series pulper machine is suitable for a various of fruits and vegetables pulping and separating.(such as:tomatoes,kiwis,strawberries,

Apples,grapes,pears,orange etc.)

MDJ2 Series fruit pulp machine is well-suited for all kinds of stone fruits(mango,peach and apricot),berries class(yangtao,strawberry),and the precooking and softening class(apple,pear)etc.This machine is used for separating fruit paste and other impurities automatically.

The fruit pulp processing,the first-pass can achieve the fruit core-removing,and the second-pass of beating can realizes automatic separation of the fruit core,peel and residue.

Working principle

A belt drive the motor to make the rotor part installed on the spline shaft rotate at high speed. The fruit enters the machine from the feed port,and the feeding blade spirally transports the material to the beating rod,which plays a role in the beating rod.The material was smashed.

Due to centrifugal force,the juices and pulp in raw material(have become pulpy) pass through the sieve holes on the screen to enter the next stage of beating(the sieve holes are based on the size of the fruit core),and the core is removed from the slag pulp blade.The slag outlet can realize automatic separation of slurry and slag.

Technical parameter:

Model Type Power    (kw) Capacity Rotating speed(r/min) Dimensions(mm)
DJ1-0.12 DJ1  Series Single Channel 1.5kw 0.12t/h 860r/min 820*450*950mm
DJ1-2.5 4kw 2.5t/h 860r/min 1450*770*1523mm
DJ1-3.5 5.5kw 3.5t/h 860r/min 1550*770*1530mm
DJ1-5 11kw 5t/h 860r/min 1750*1000*1700mm
DJ2-0.24 DJ2 Series Double Channel 3kw 0.24t/h 860r/min 820*1000*1350mm
DJ2-4 7.5kw 4t/h 860r/min 1370*1370*1800mm
DJ2-7.5 11kw 7.5t/h 860r/min 1935*2275*1700mm
DJ3-7.5 Three  channel 18.5kw 7.5t/h 860r/min 1935*2275*1700mm
MDJ2-4 MDJ-Core removal 7.5kw 4t/h(mango1.8t) 860r/min 1370*1370*1800mm
MDJ2-5 15kw 5t/h(mango3t) 860r/min 1650*1370*2000mm
