Brief Description:

The machine is especially designed for passion fruit and guava,capable of separating the pulp and seeds from the fruits during the juice extraction process.The final products were pure fruit juice,peel and seeds.

Moreover,the machine is capable of not only producing passion fruit juice,but also isolating the passion fruit skin and seeds.

Working principle:

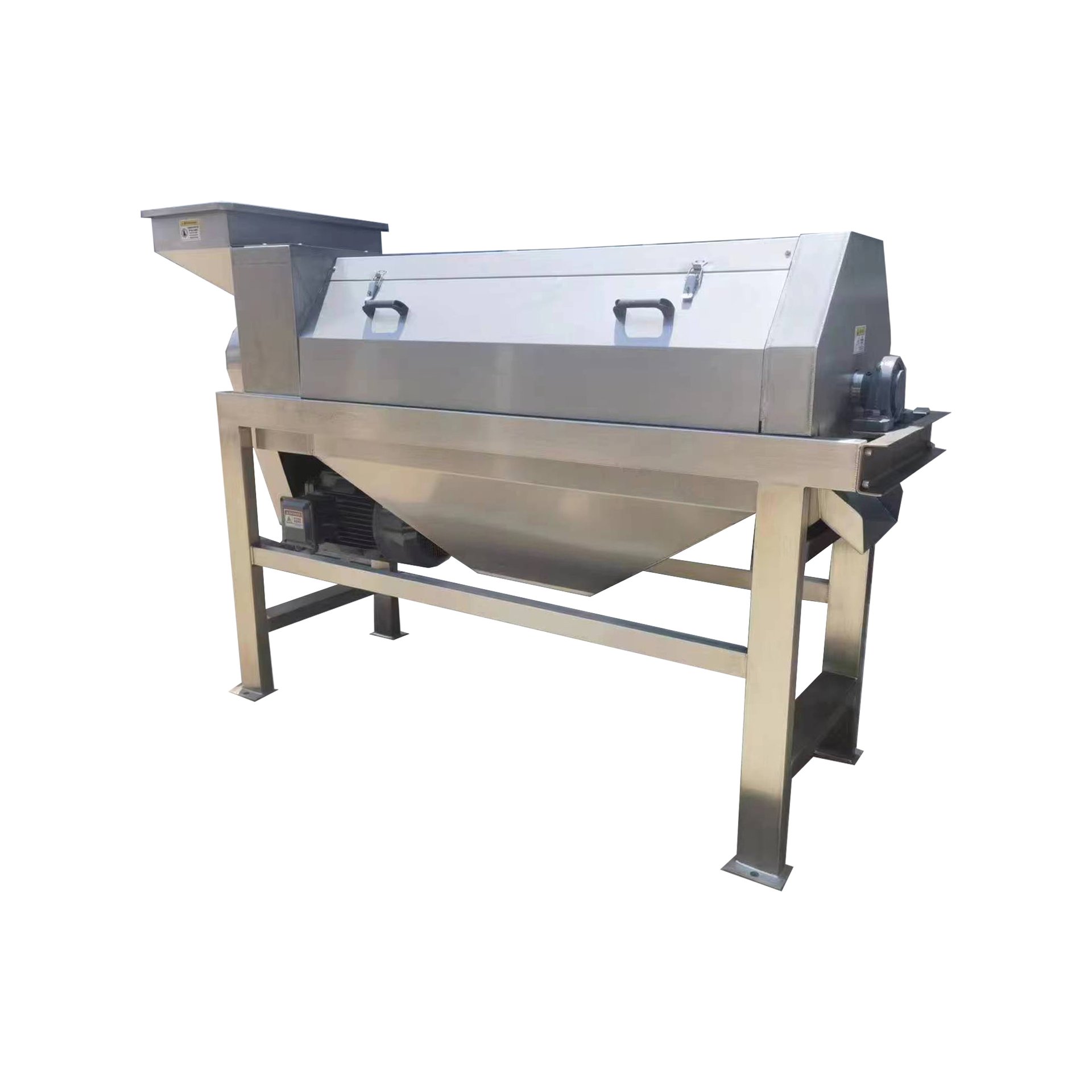

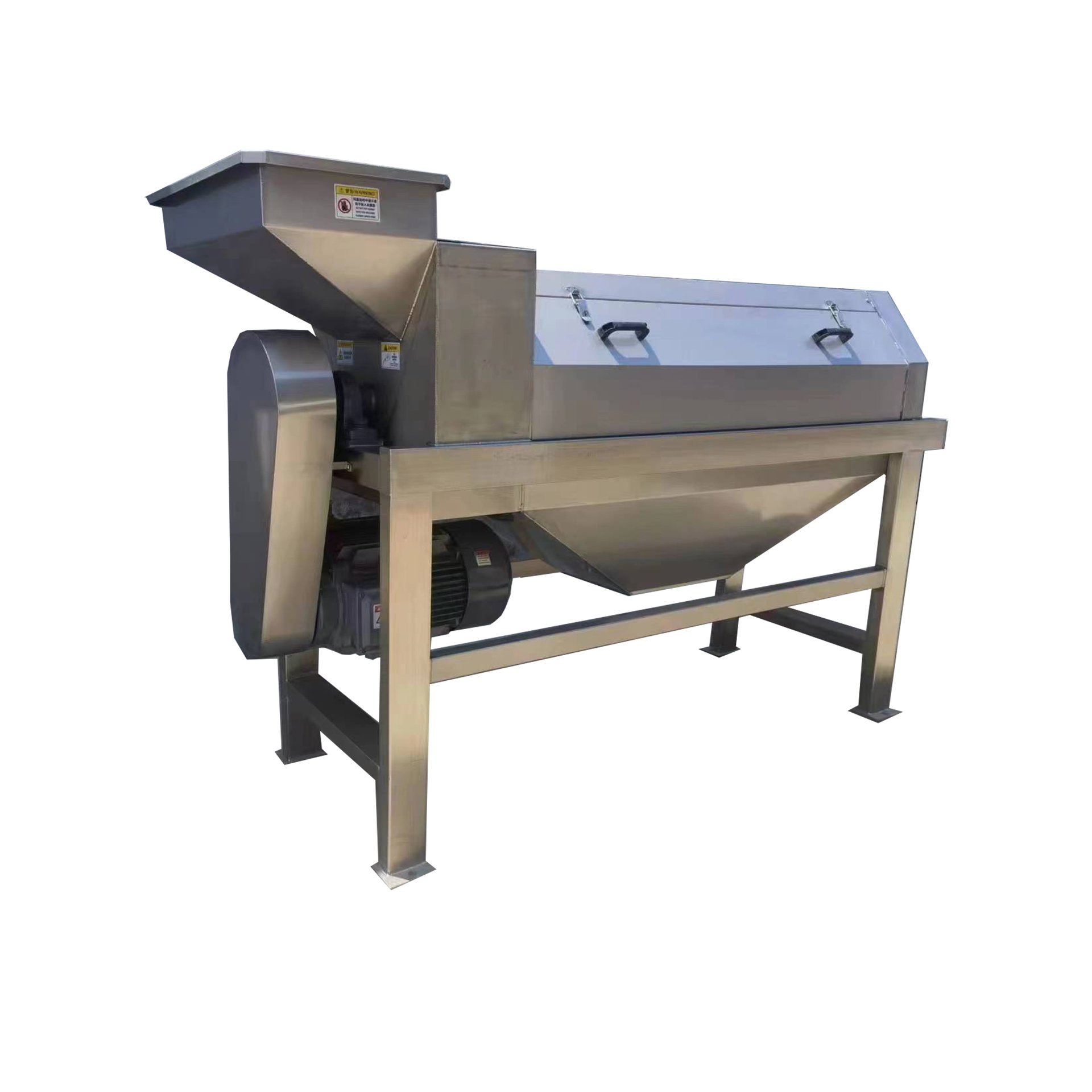

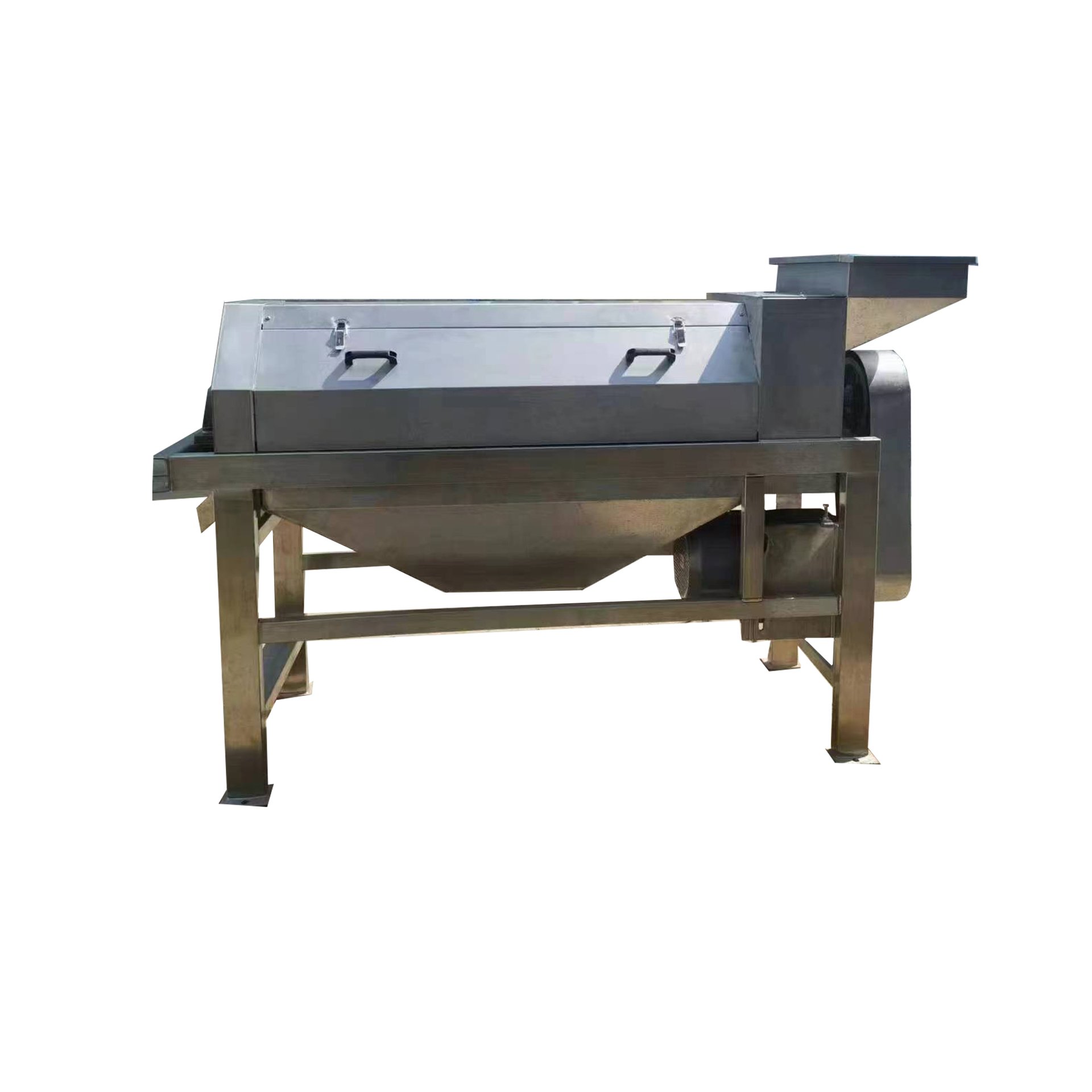

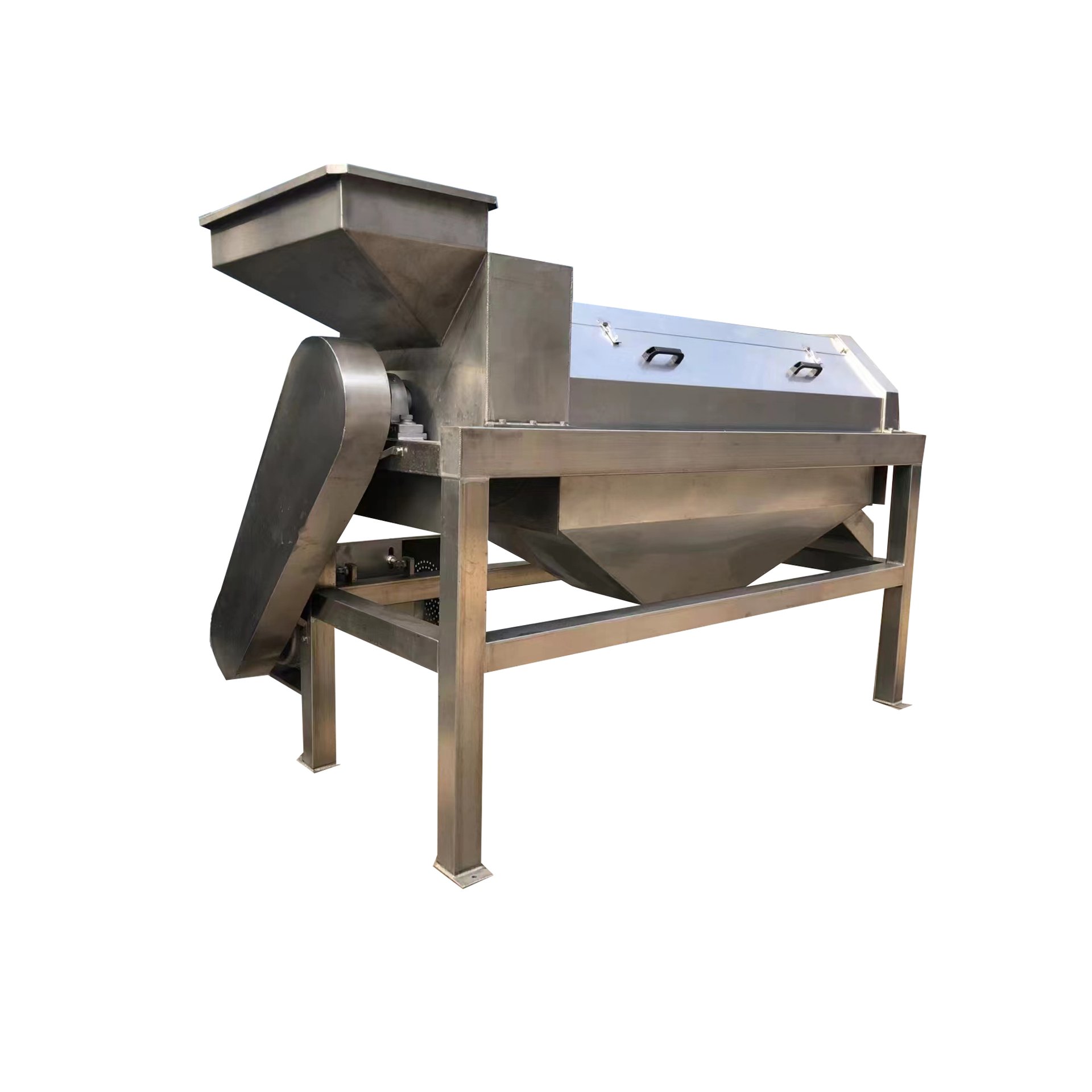

The machine is mainly composed of a feeding hopper, crusher,separating tank,seed extractor tank,drive system,support frame etc.

Throughout the the working process,the passion fruit is initially crushed,followed by the separation of skin,Subsequently,the seed and juice are separated,ultimately achieving the separation of the pulp,peel,and seed.

Except for the transmission parts,the whole machine is made of food-grade 304 stainless steel.

Technical parameter:

Passion fruit seeds remover

Model BXG-1
Power 2.2kw
Capacity 0.8-1t/h
Dimension(mm) 1900*850*2260
Weight 650kg

Tomato seeds remover

Model QZJ-1.2
Power 2.2kw
Capacity 0.5-1.2t/h
Extracting rate 97%
Broken rate 2%
Dimensions(mm) 1900*850*2260
Weight 650kg

Application:

The machine is mainly used for separating the peel and seeds from passion fruit,pomegranate,watermelon and other fruits and vegetables that containing seeds.Subsequently,the seeds can be utilized for the production of juice,beverages,and similar products.

The entire machine is fabricated from high-quality 304 stainless steel,which meets the stringent requirements of the food industry.
