Fruit & Vegetable washing machine
Henan Tianzhong is a leading brand specializing in the manufacturing of dewatering screw press, solid-liquid separators, vegetable pulping machines, screw conveyors, and trash can lifters, etc.We are an integrated solution provider of dehydration and reduction of waste material in various industries,R&D,production and sales of complete sets of fine filtration equipmenet.Choose our OEM/ODM services for a combination of speed and quality.Tianzhong Machinery,You First Option, Longlife Benefit!
Brief Description
This machine is specifically designed for the efficient laundering and purification of a substantial volume of vegetables,fruits, and medicinal materials within the production process.

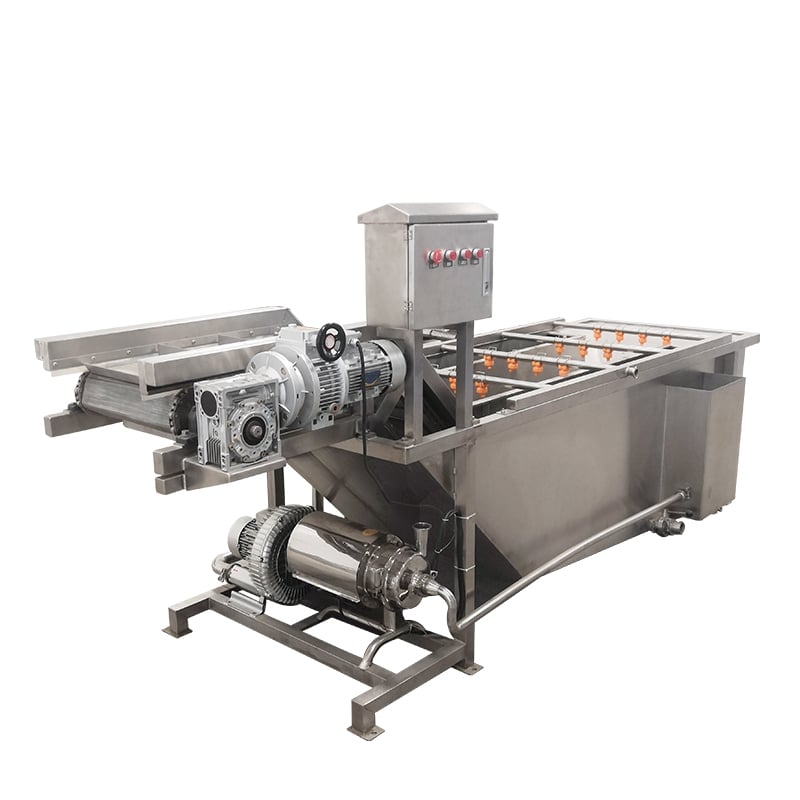

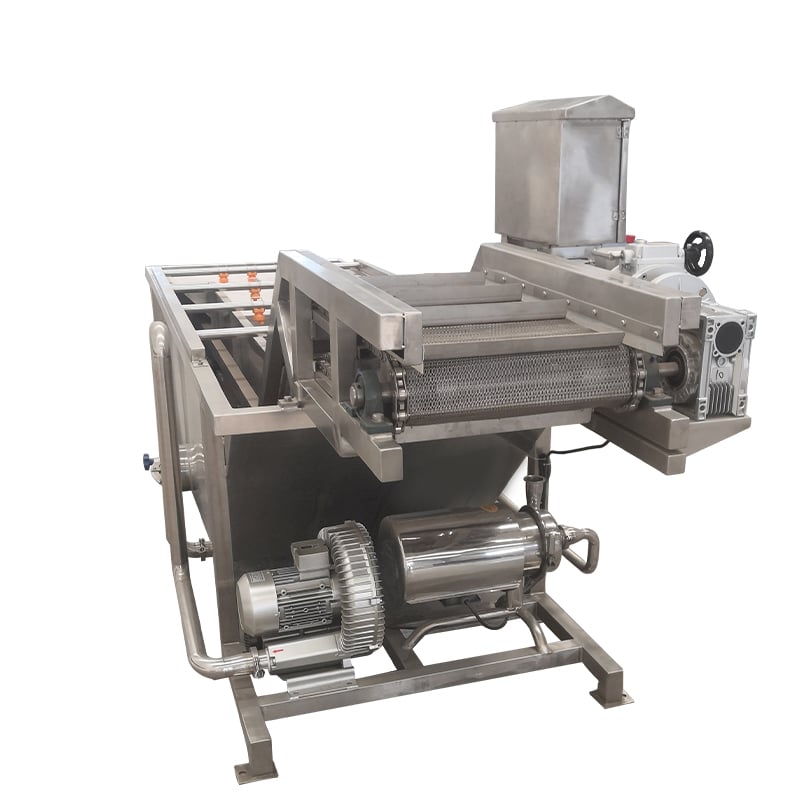

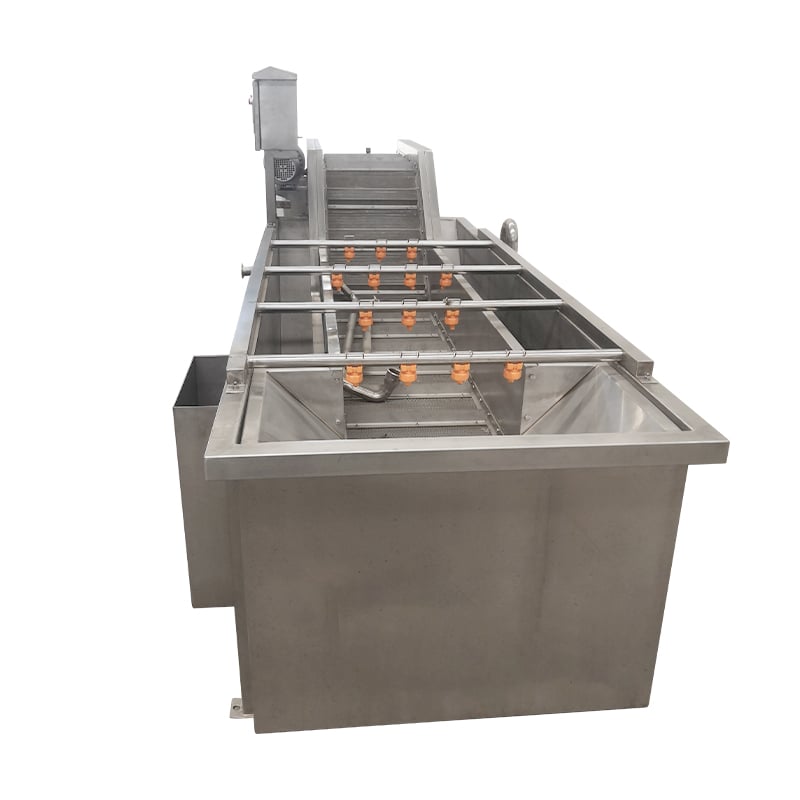

1.The bubble cleaning machine is fitted with a bubble detection system and high-pressure spray nozzle on its upper section,which effectively removes surface debris from the items being cleaned,replicating the fundamental actions of manual cleaning.Additionally,it significantly reduces the risk of collision,impact,and scratching commonly associated with manual cleaning, thereby enhancing work efficiency.

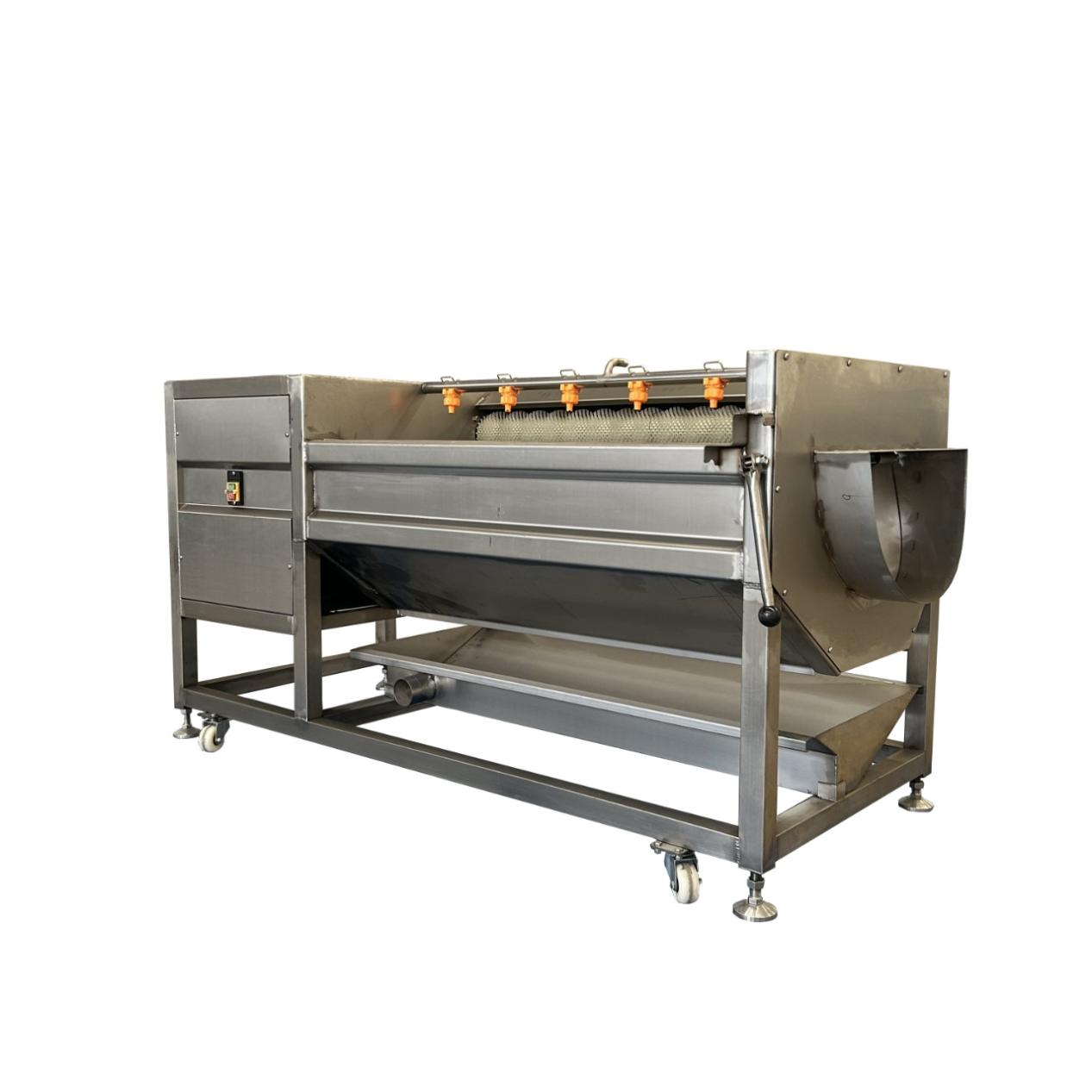

2.The brush cleaning machine is suitable for cleaning round fruits and vegetable.The material is rotated by an angle of 306 degrees around the revolving brush roller for cleaning purpose.The action of the brush rotation propels the material forward,which effectively clean dirt and dust on the surface of the material.There are two kinds of brush cleaning machine:Cylindrical and waveshape.

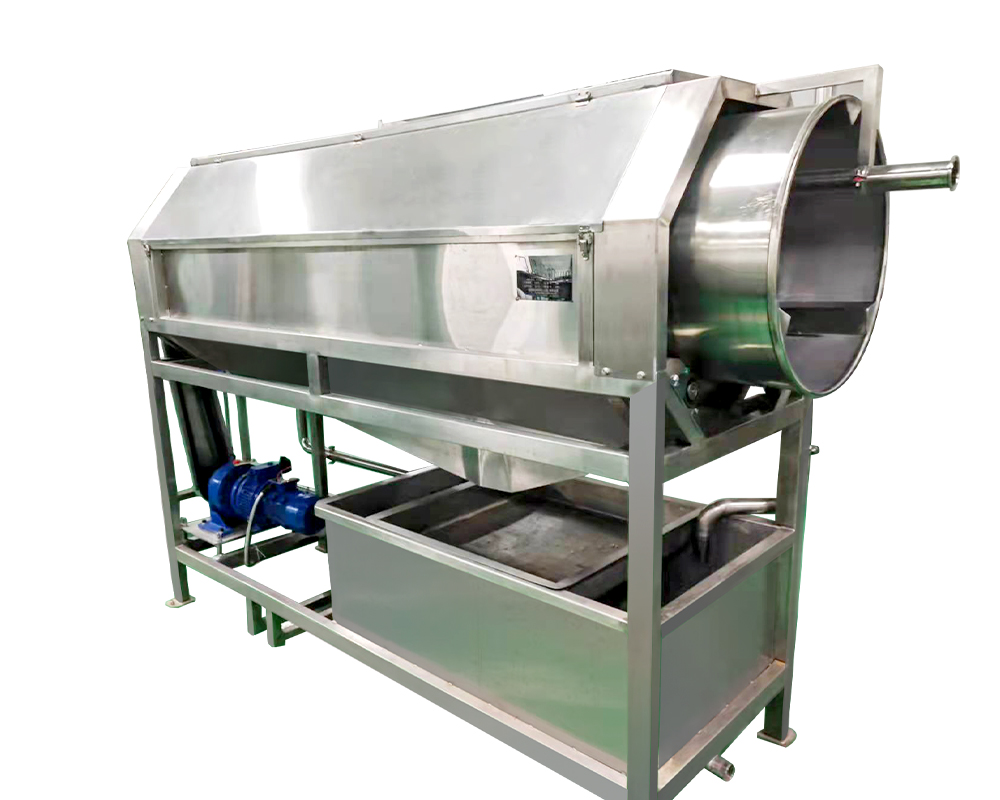

3.The rotary washing machine is ideally suited for the cleansing and washing of vegetables. such as carrots,sweet potatoes, potatoes, apples, and pears. The raw materials are uniformly distributed within the rotating rollers, where the action of rotation promotes continuous turnover of the items. As the materials interact with the roller brushes and among themselves, they are simultaneously subject to high-pressure spray cleaning.
Technical parameter:
Model | Power | Capacity | Weight | Dimensions(mm) |
QPX3000 | 3.75kw | 500kg/h | 180kg | 2000*1400*1300 |
QPX4000 | 4.1kw | 800kg/h | 400kg | 4000*1400*1300 |
QPX5000 | 5.1kw | 1500kg/h | 600kg | 5000*1400*1300 |
QPX6000 | 5.5kw | 2000kg/h | 850kg | 6000*1400*1300 |
Model | Power | Capacity | Weight | Dimensions(mm) |
MSX1000 | 1.1kw | 1000kg/h | 260kg | 1600*850*800 |
MSX1500 | 2.2kw | 1500kg/h | 350kg | 2100*850*800 |
MSX2000 | 3kw | 2000kg/h | 420kg | 2600*850*800 |
Model | Power | Capacity | Weight | Dimensions(mm) |
GTX-5 | 2.2kw | 5t/h | 1550kg | 3000*1000*1800 |
GTX-5 | 2.2kw | 5t/h | 1550kg | 3000*1000*1800 |
Application:
It can be applied to the cleaning, soaking,sterilization,and color preservation of granular,leafy,and rhizome products such as leafy vegetables,edible fungi,fruits,aquatic products,and Chinese herbal medicines.
