Garbage bin hoist
Henan Tianzhong is a leading brand specializing in the manufacturing of dewatering screw press, solid-liquid separators, vegetable pulping machines, screw conveyors, and trash can lifters, etc.We are an integrated solution provider of dehydration and reduction of waste material in various industries,R&D,production and sales of complete sets of fine filtration equipmenet.Choose our OEM/ODM services for a combination of speed and quality.Tianzhong Machinery,You First Option, Longlife Benefit!
Brief Description:

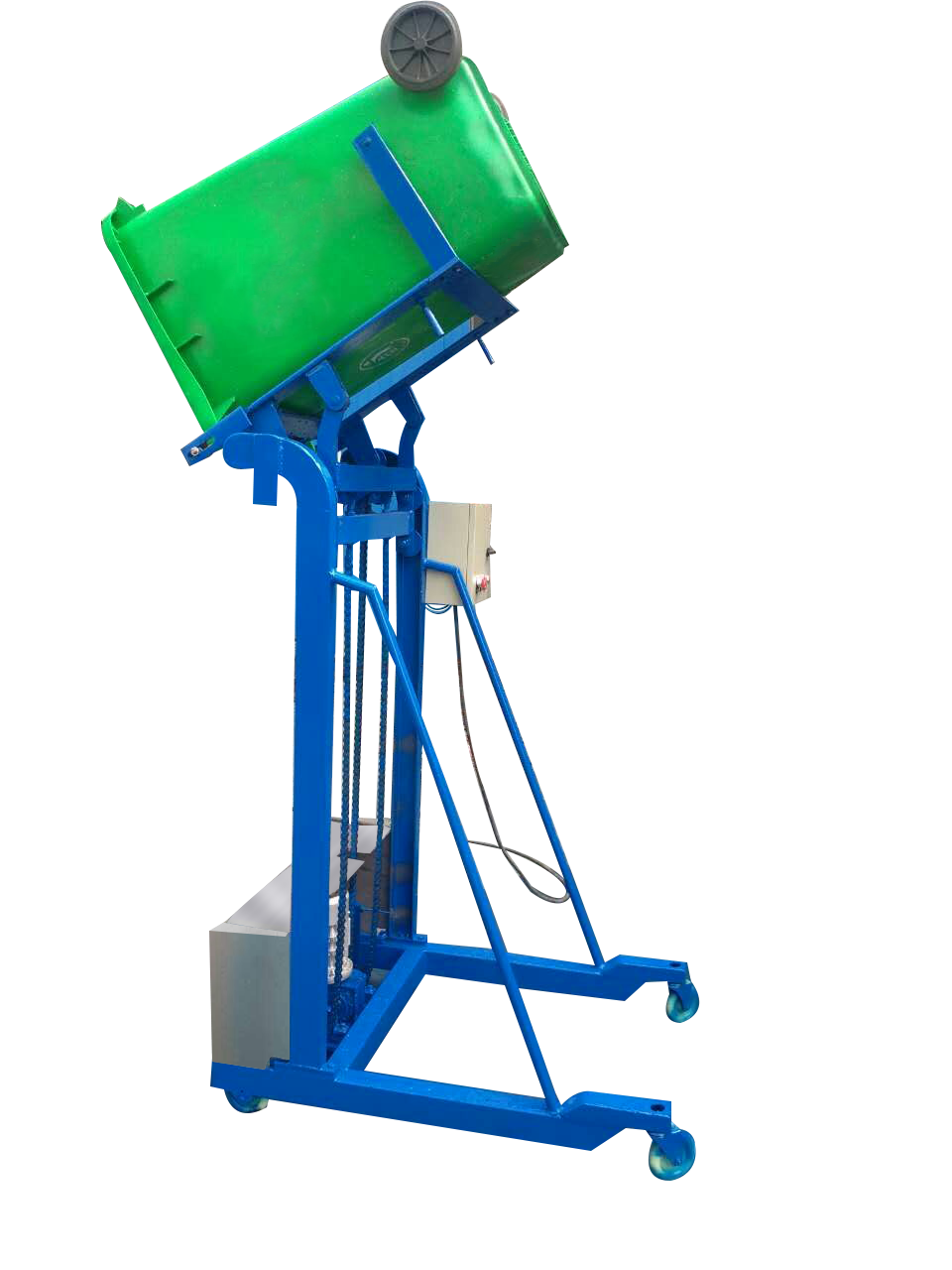

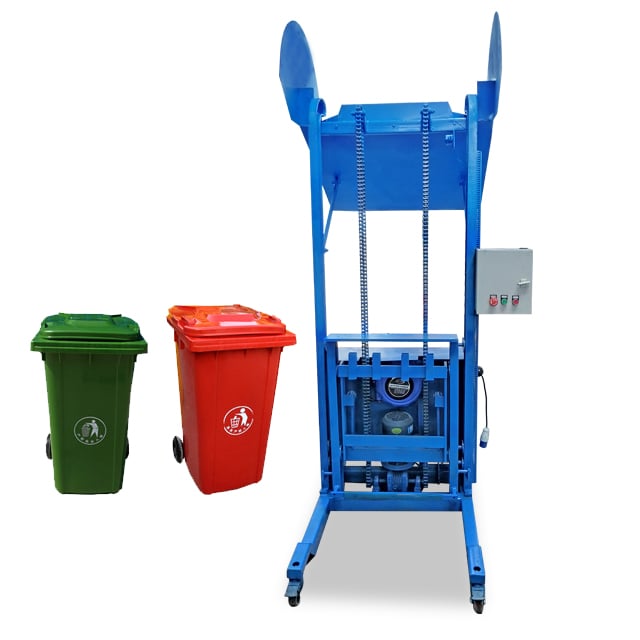

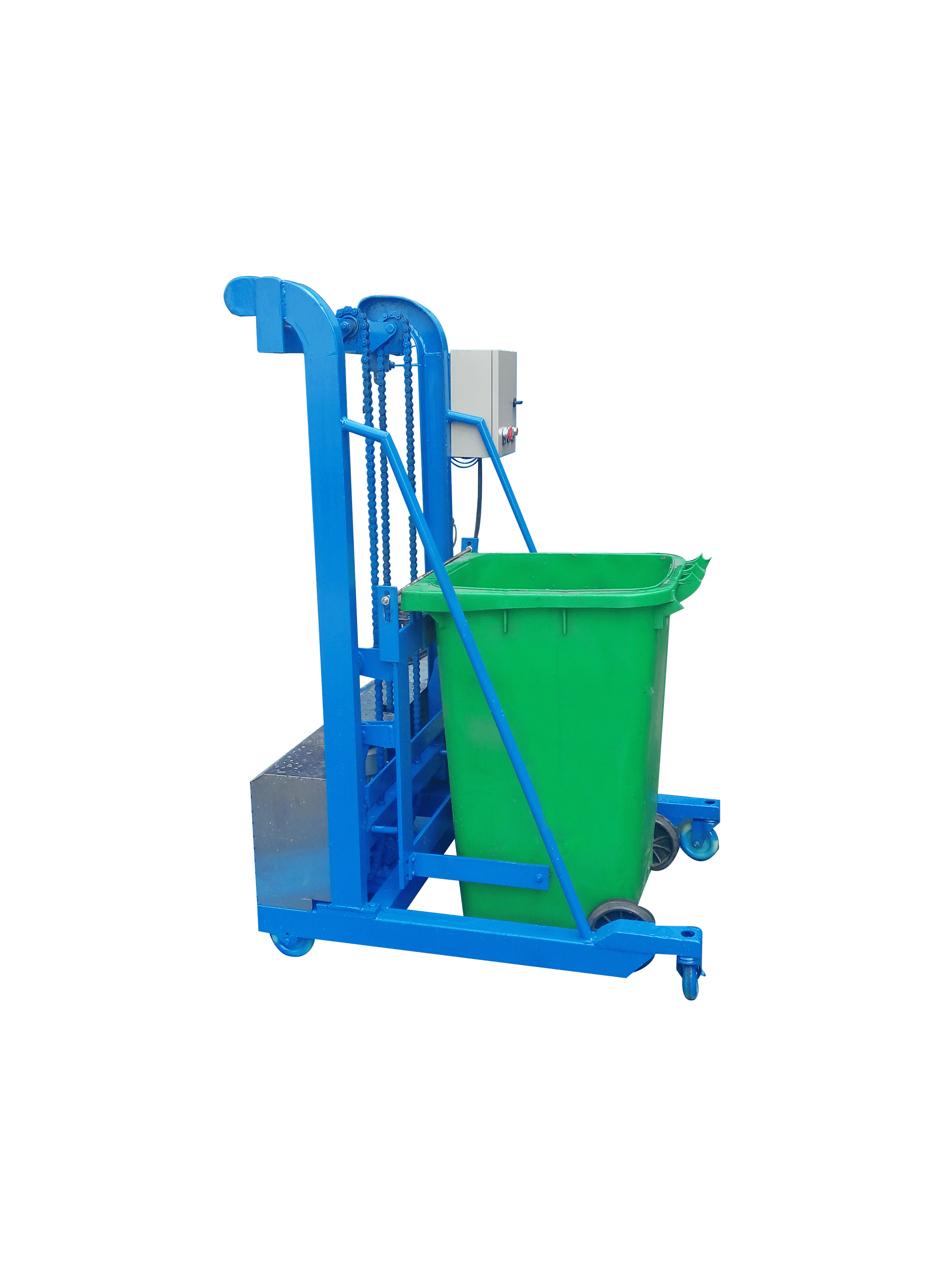

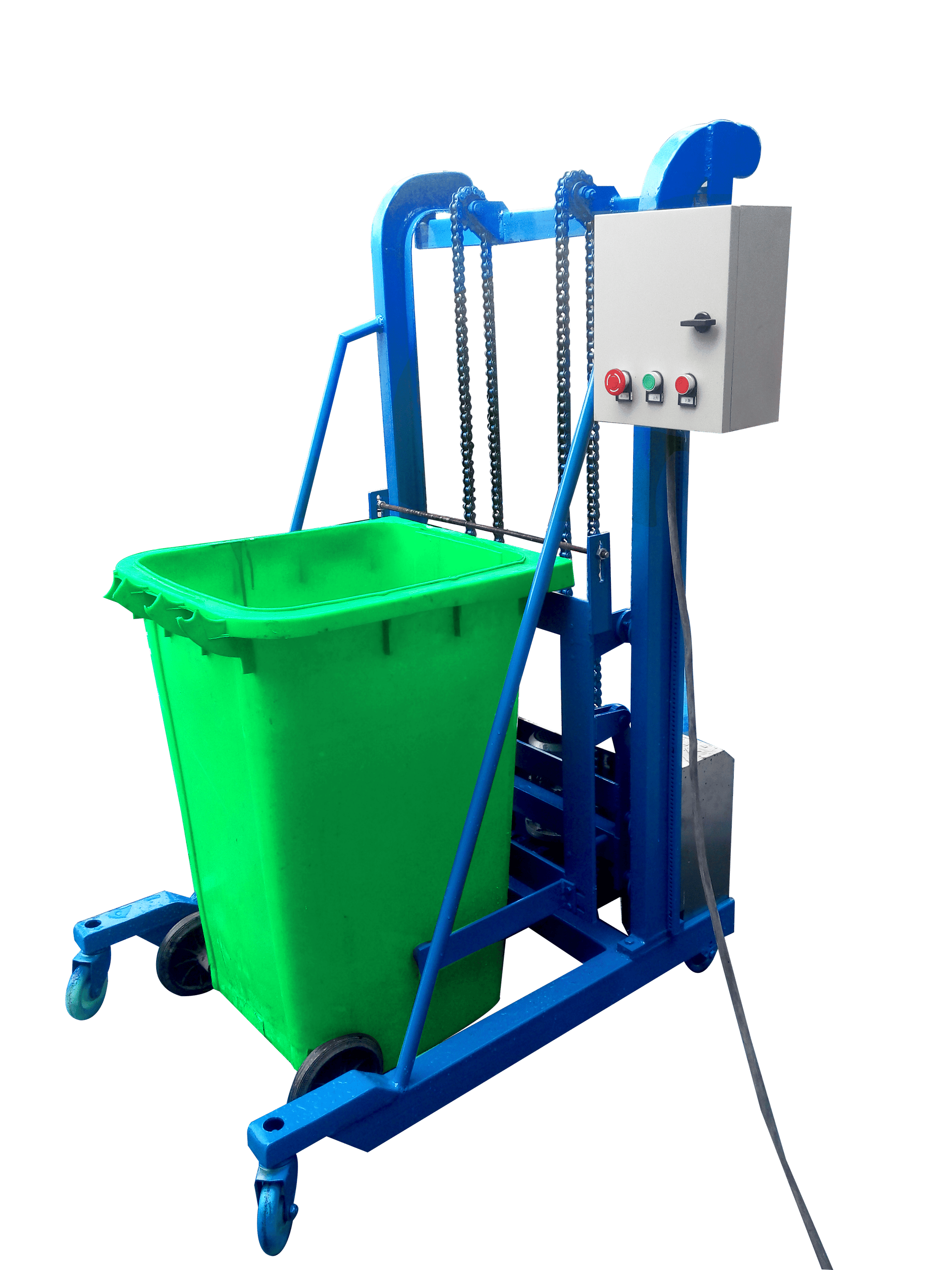

Garbage bin hoister,developed by Tianzhong Machinery,is an innovative auxiliary device designed to significantly improve the automation of the solid-liquid separation process,This efficient device can be used in bins for easy and fast dumping or dispose of heavy waste.
The garbage bin hoist”is a type of Chain hoist designed to lift garbage bin,with a lifting weight from 1.6 meters to 5meters.
It is compatible with standard-size barrels,including size of 120L,240L,360L,660L,and 1000L,among others,Additionally, the lifting capacity can be tailored-made to range from 50kg to 1000kg.
The angle of lifting ranges from 135 degrees to 145 degrees,and lifting speed is 1-2times per minute.
The hanging bucket type trash can hoist utilizes a chain and motor linkage mechanism,with some equipment incorporating hydraulic lifting to facilitate the lifting and rotation of the garbage bin,thereby automatically collecting garbage from multiple bins into a single bin.
Instruction for use:
Instruction for use:The trash can is placed on the elevator, so that the lifting mechanism within the trash can is embedded in the front edge, and upon activating the ascending button，the trash can is automatically raised to the upper garbage entrance.The machine automatically flips the garbage in the trash can into the entrance.After the garbage is dumped into the trash can,the decent button is clicked, and the trash can will automatically lower to ground once the elevator reaches a stable floor.The trashcan can then be moved out of the elevator.
Technical parameter:
| Model | Specificaiton |
| Bin capacity | 120L,240L,360L,660L,1000L |
| Lifting weigh | 1.6-5meters(can be customized as requests) |
| Weight capacity | 50kg-1000kg |
| Dumping angle | 135° |
| Lifting speed | 1-2times/minute |
| Power source | Electric or Hydraulic |
| Note:we are capable of tailor-making machine and design drawing to meet customer’s specific requirements. | |
Application:
This product is compatible with a variety of trash cans (circular,square,rectangular,etc.),and can be tailored to meet your specific requirements.
