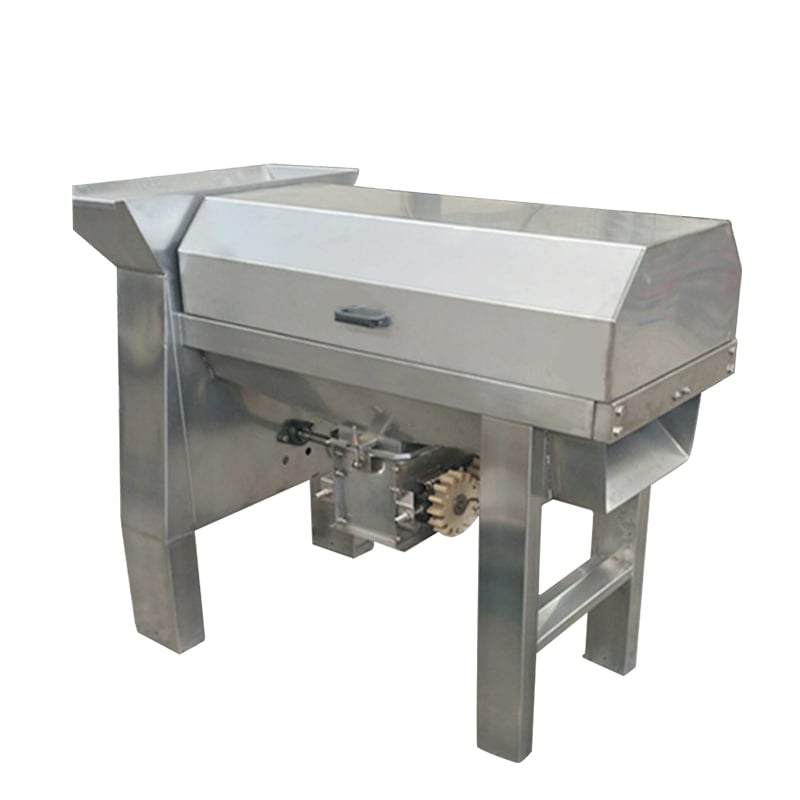

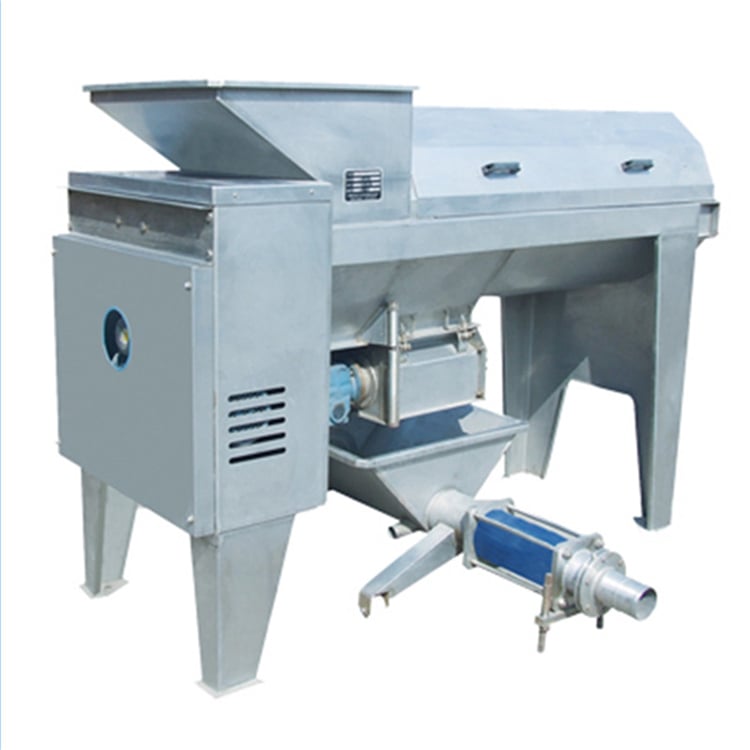

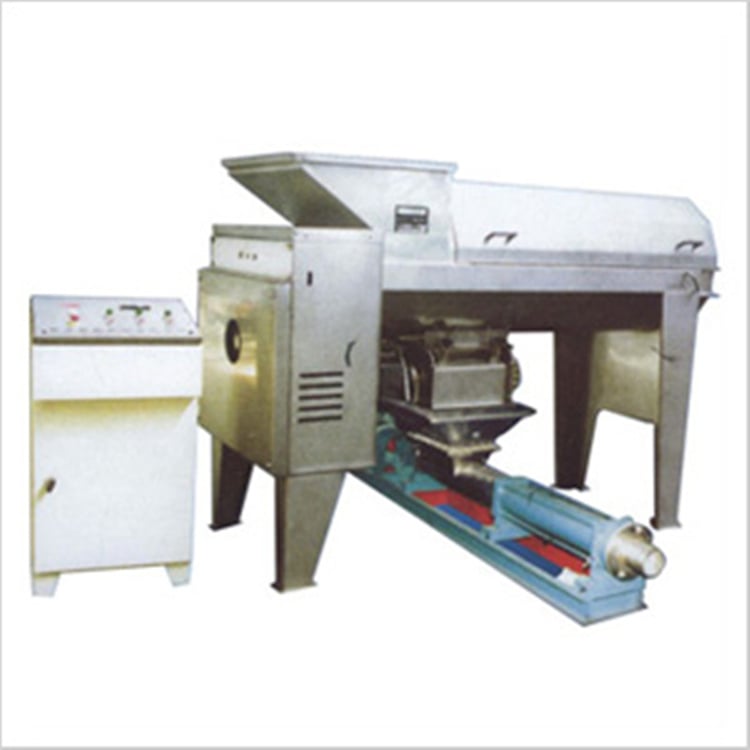

Grape destemmer crusher machine
Henan Tianzhong is a leading brand specializing in the manufacturing of dewatering screw press, solid-liquid separators, vegetable pulping machines, screw conveyors, and trash can lifters, etc.We are an integrated solution provider of dehydration and reduction of waste material in various industries,R&D,production and sales of complete sets of fine filtration equipmenet.Choose our OEM/ODM services for a combination of speed and quality.Tianzhong Machinery,You First Option, Longlife Benefit!
Brief Description:
The grape crusher destemmer machine is specially designed for wineries , Incorporate a newer technology from France and Italy .it is capable of efficiently separating grapefruit from stalks,extracting stems,crushing grapes,and conveying grapefruit pulp.This equipment is an ideal choice for small to medium-sized wineries.
Main feature:
- Quantiative spiral delivery.The fruits are firstly destemmed,the crushed into fruit pulp.
- Both the destemming shaft and the destemming rotary screen possess stepless speed regulation capabilities.Additionally, the rotary sieve aperture can be tailor to a variety fruit and vegetable of our clients.
- The crushing roller is made of non-toxic rubber, sanitary and easy to clean.
- The whole machine is all made of high-quality stainless steel.
- The rotary sieve aperture can be set depending on the grapefruit size.
- The crushers generally remove approximately 85% of stems based on the specific circumstance.
Technical parameter:
| Model | JCP-1 | JCP-5 | JCP-10 | JCP-20 | JCP-50 |
| Capacity | 1-2t/h | 5-7t/h | 7-15t/h | 15-25t/h | 30-50t/h |
| Output pump outlet | 50mm | 75mm | 100mm | 100mm | 125mm |
| Crusher power | 0.55kw | 0.75kw | 1.1kw | 1.1 | 3 |
| Main power | 0.75kw | 1.5kw | 2.2kw | 4 | 7.5 |
| Pump power | 3kw | 3kw | 5.5kw | 7.5 | 15 |
| Weight(t) | 400kg | 780kg | 950kg | 1300kg | 2200kg |
| Dimension(mm) | 1600*500*1400 | 1850*630*1450 | 2300*950*1600 | 2750*970*1850 | 3500*1450*2200 |
