Henan Tianzhong is a leading brand specializing in the manufacturing of dewatering screw press, solid-liquid separators, vegetable pulping machines, screw conveyors, and trash can lifters, etc.We are an integrated solution provider of dehydration and reduction of waste material in various industries,R&D,production and sales of complete sets of fine filtration equipmenet.Choose our OEM/ODM services for a combination of speed and quality.Tianzhong Machinery,You First Option, Longlife Benefit!

Brief Description:

The screw-type extrusion solid-liquid separator is ideal for raw materials with a higher liquid content than solid content, such as paper pulp, wine residue from breweries, and livestock wastewater.

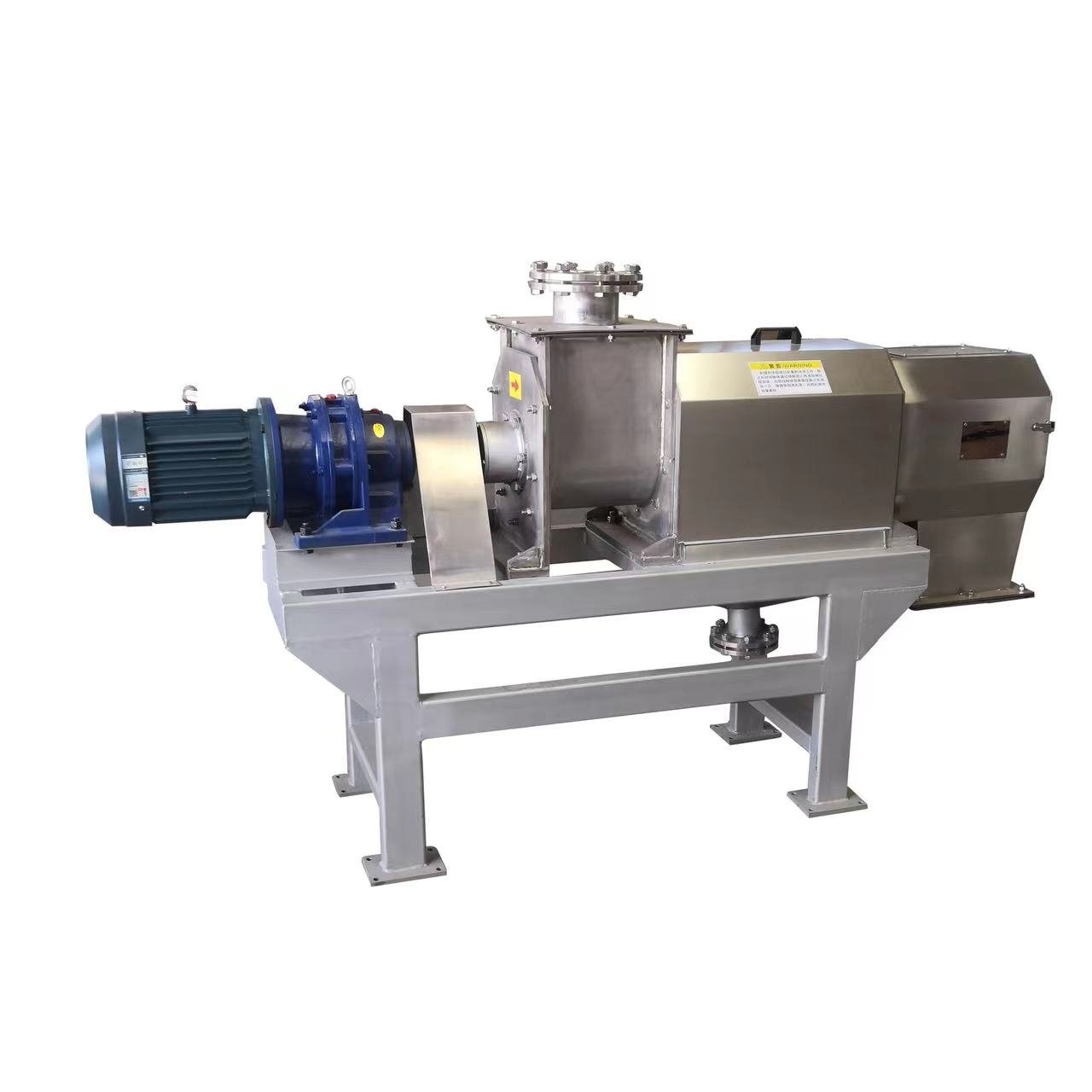

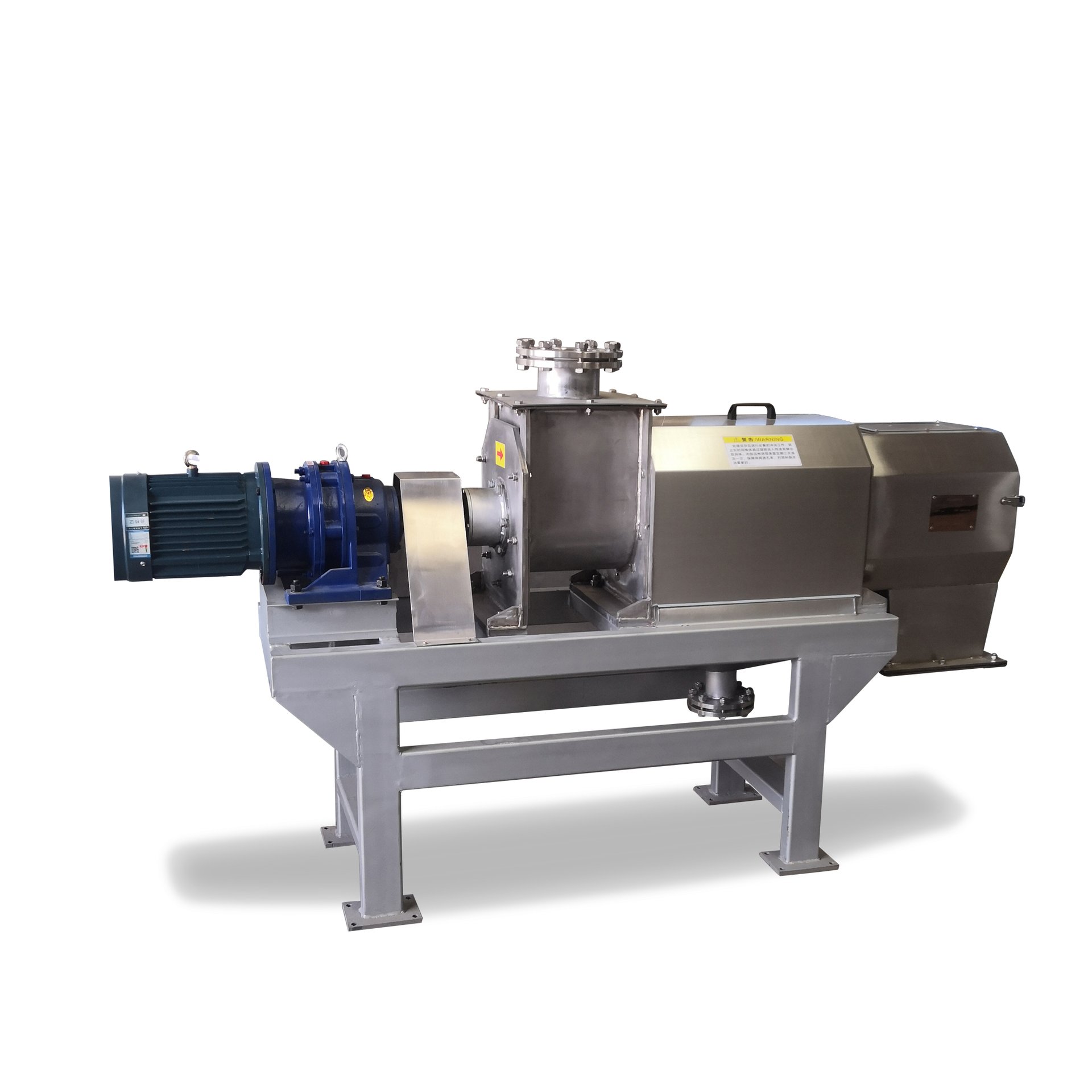

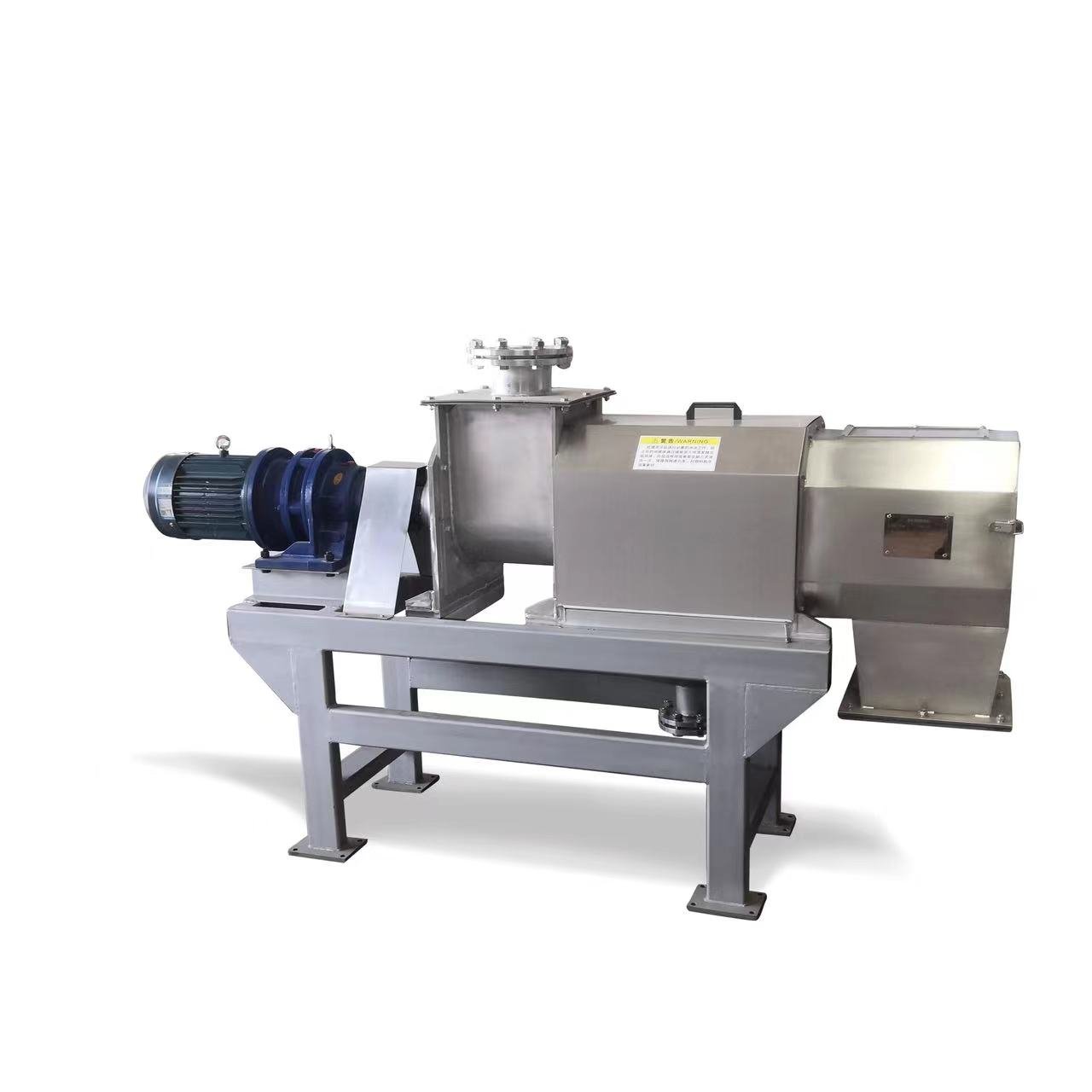

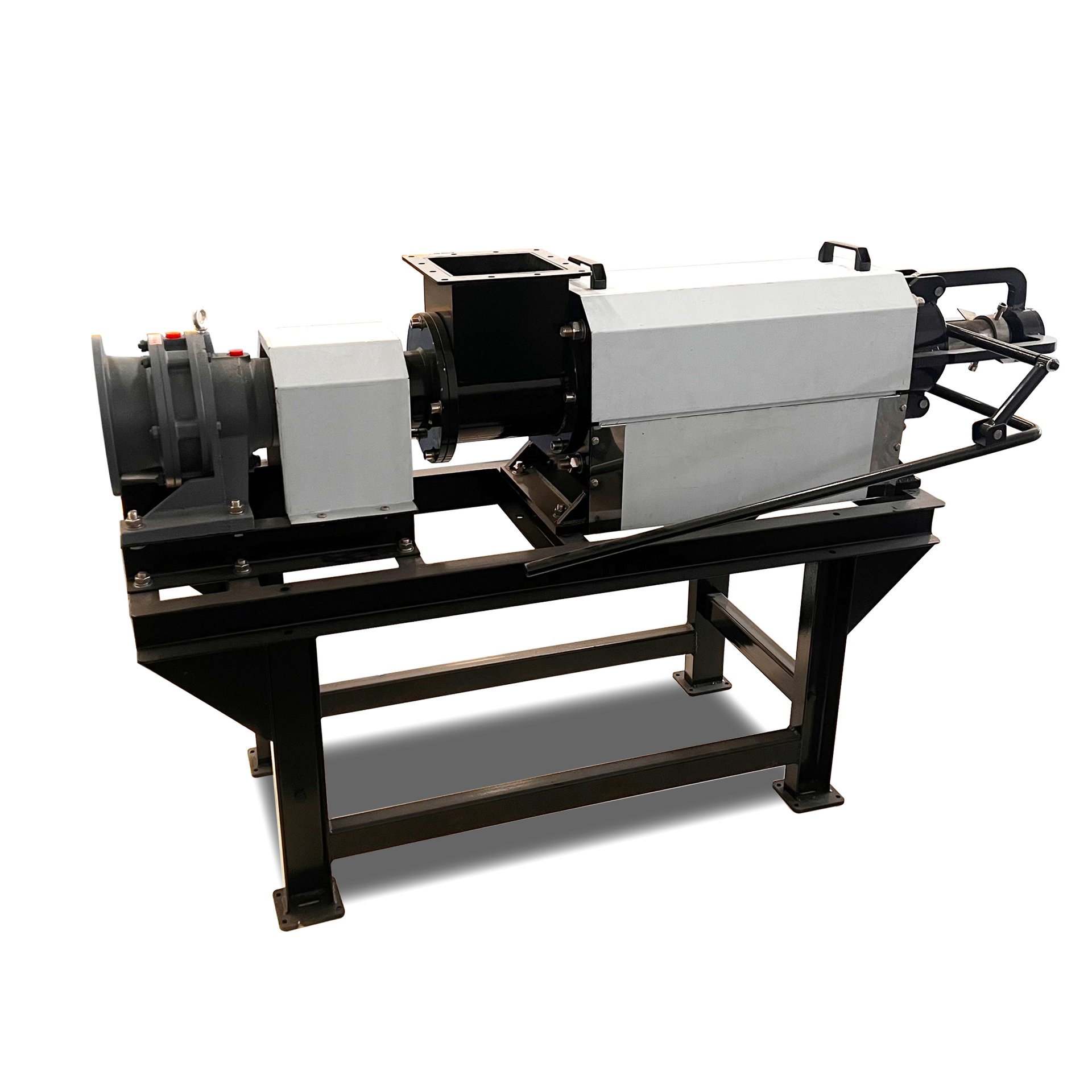

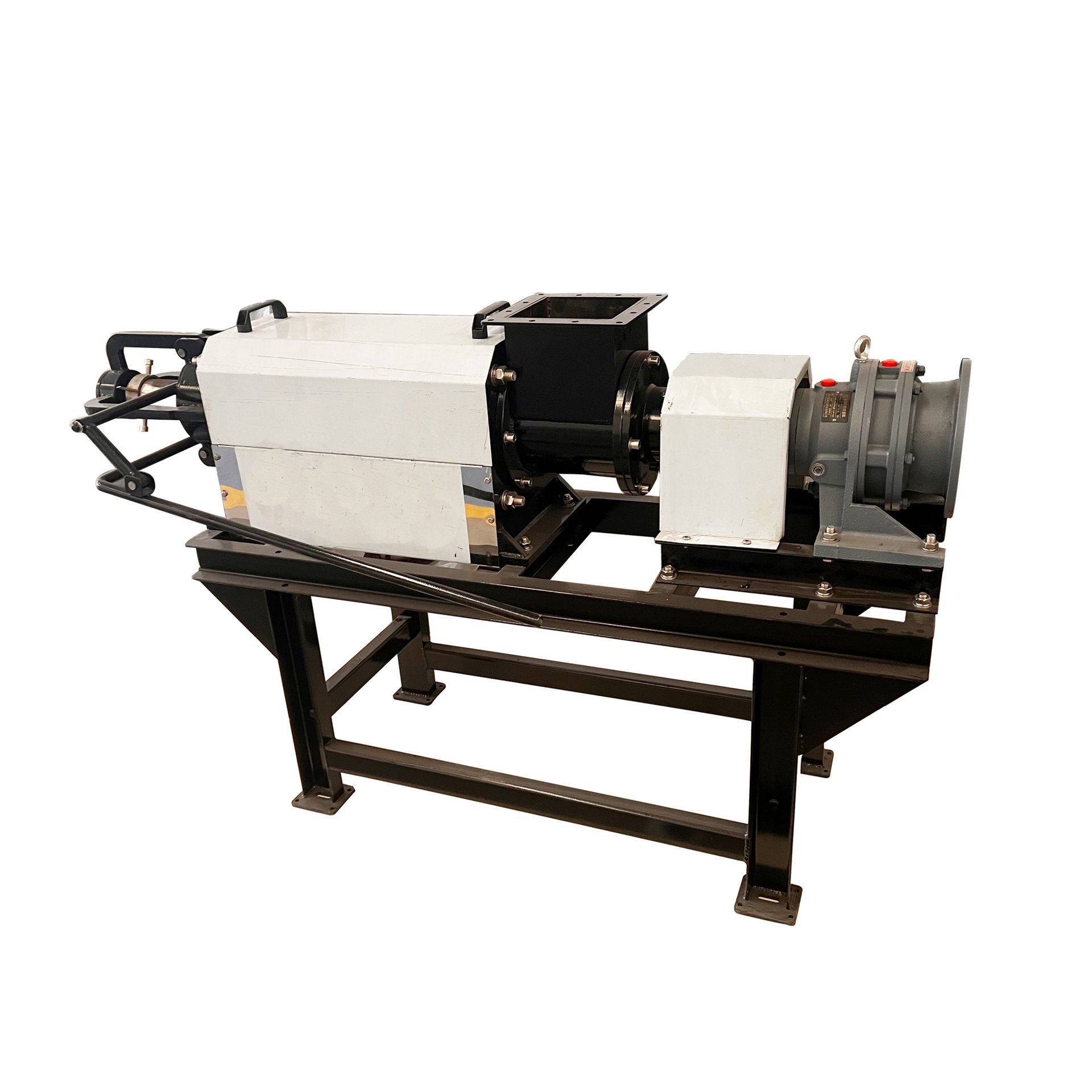

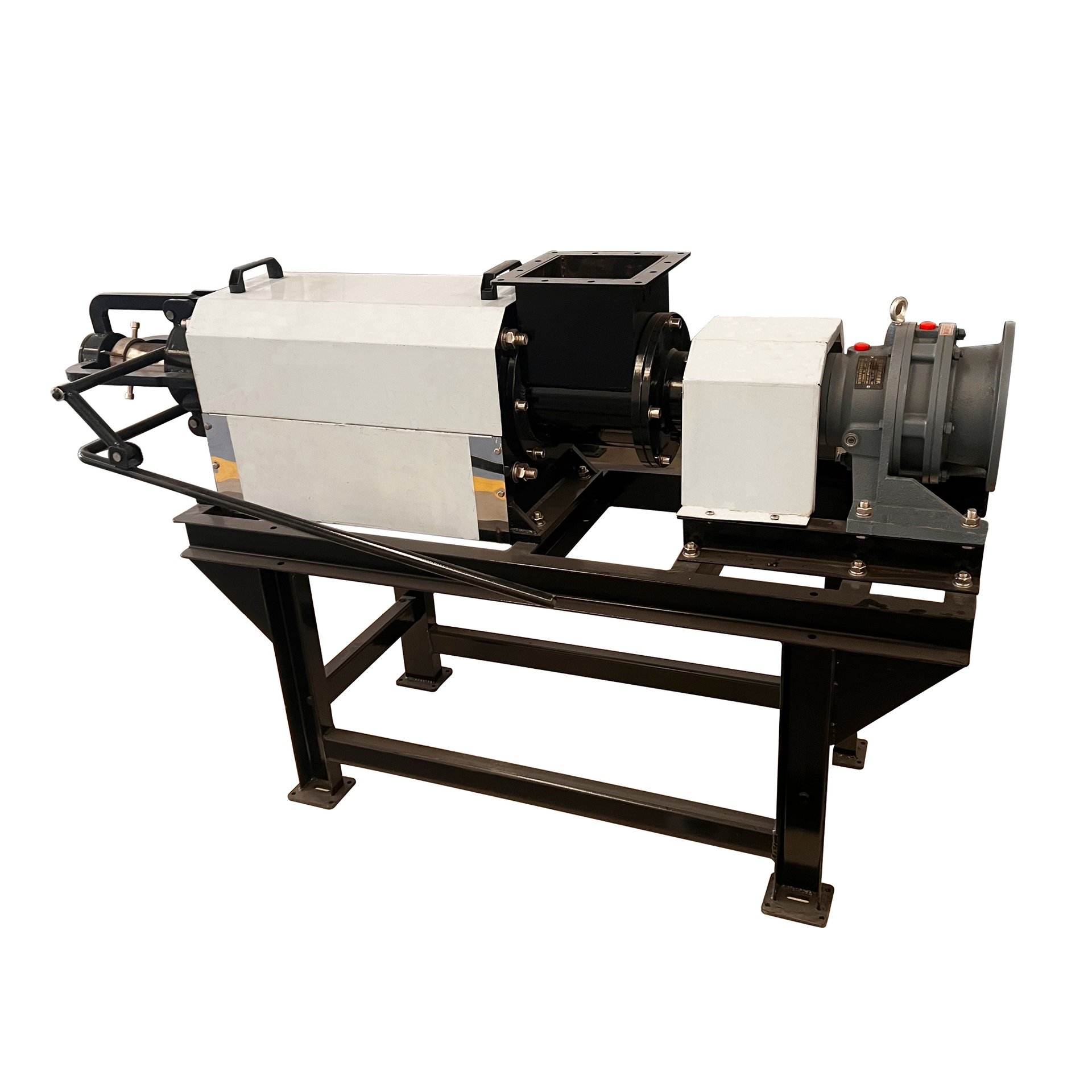

The equipment consists of the body,screen mesh,press screw conveyorreducer motor, unloading device and cutting conveyor pump.

When the mixed liquid is transported through the pipeline by the cutting conveyor pump to the solid-liquid separator, the separator activates, and the pressing screw conveyor gradually propels the mixed liquid forward within the body.Simultaneously,the front-end pressure continuously increase,compelling the water within the material to be extruded through the screen and discharge into the drain pipe.

Technical parameter:

Model TZ180 TZ200 TZ280 TZ1200
Voltage 380V 380V 380V 380V
Power(kw) 4+3kw 4+3kw 5.5+3kw 3+3KW
External dimensions(mm) 2000*600*1300 2200*610*1350 2400*800*1300 2600*1200*1600
Weight(kg) 340kg 510kg 680kg 480kg
Capacity 5-6m³/h 8-10m³/h 12-15m³/h 35-40m³/h
Filter inner diameter(mm) 180mm 200mm 280mm 260mm
Inlet diameter(mm) 76mm 76mm 76mm 76mm
Diameter of overflow port(mm) 76mm 76mm 76mm 760mm
Drain pipe diameter(mm) 110mm 110mm 110mm 160mm

Application:

  • Screw-type extrusion solid-liquid separator has small volume,low rotation,simple operation,high efficiency and no need to add any coagulant.
  • .The thick stainless steel spiral shaft features a wear-resistant treatment,ensuring a long service life.The pitch parameter is scientific and reasonable.
  • Slop screen solid-liquid separator is particularly suitable for materials with a high water content of over 90% and low solid content.(such as pig manure, cow dung,duck manure etc and press separation of slaughter house sewage. )
  • The electronic control system incorporates overload protection,leakage protection and low voltage protection.
  • The stainless steel filter mesh is manufactured by strip-shaped high-precision molding process,which has the characteristics of good filtration, anti-clogging and long service life.
