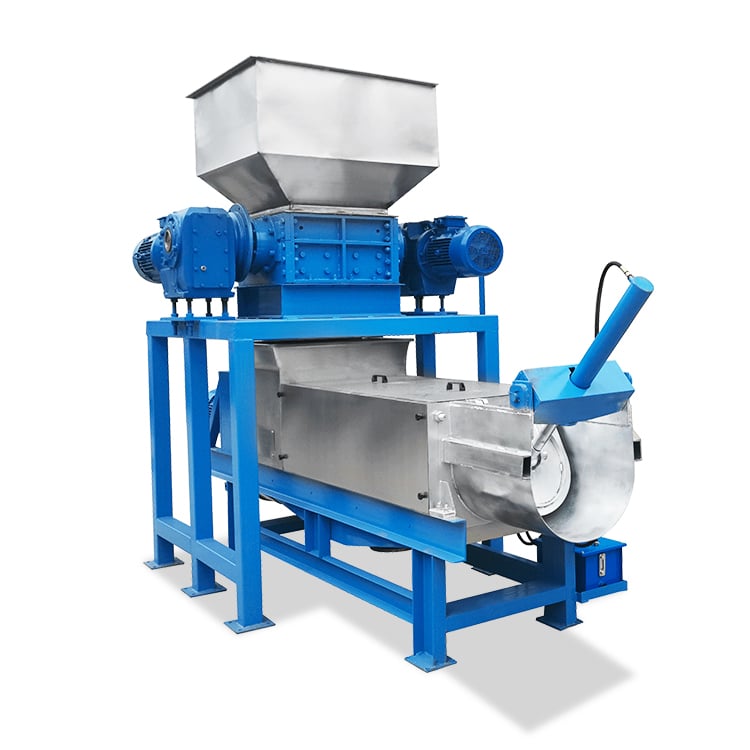

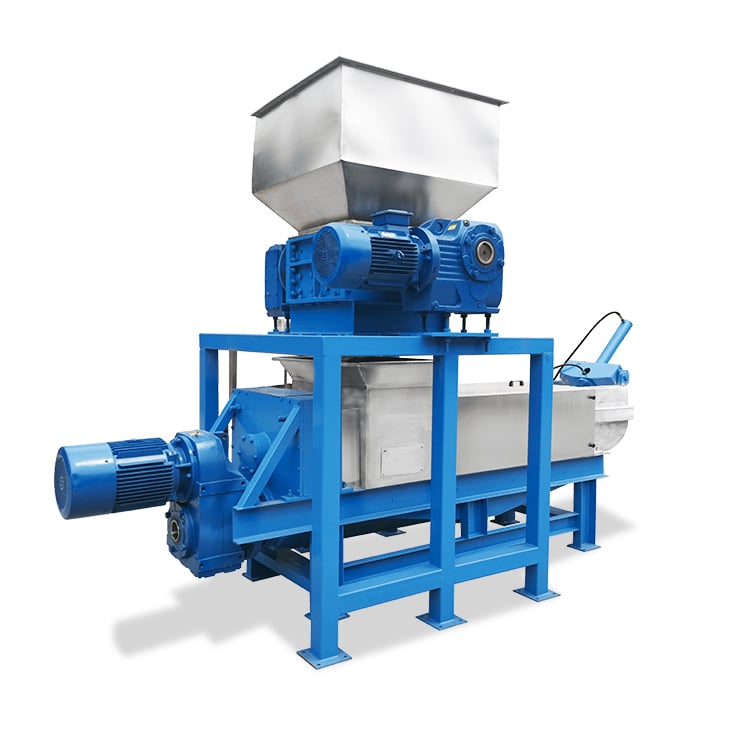

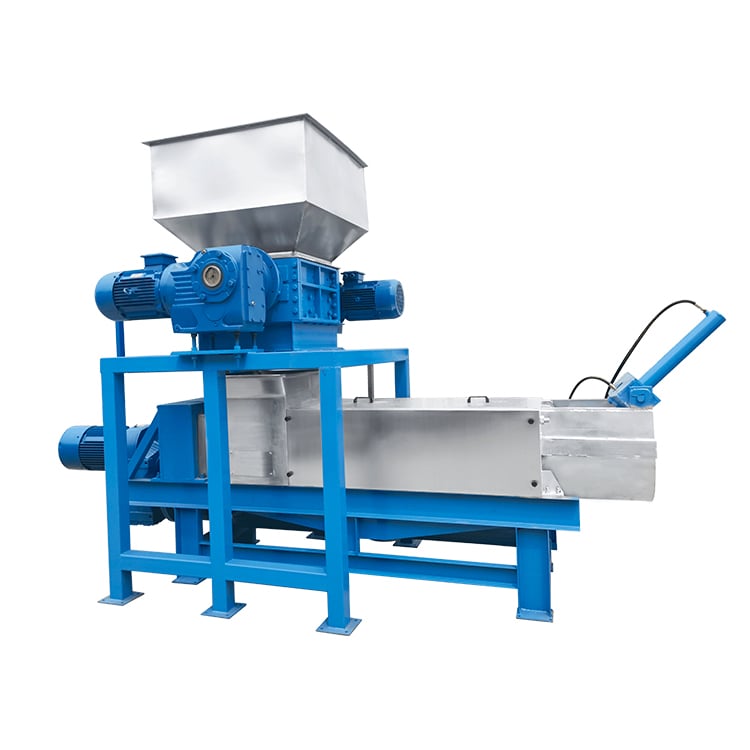

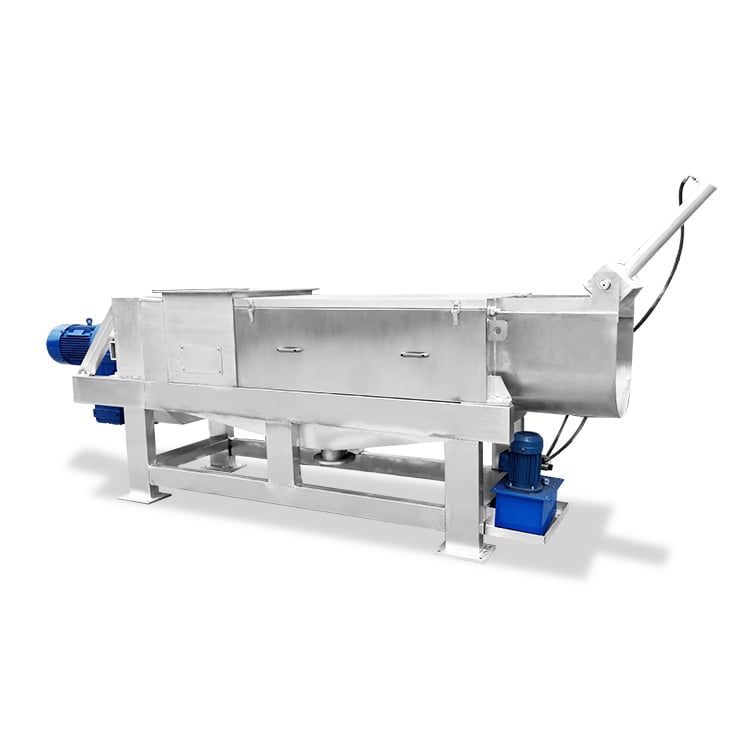

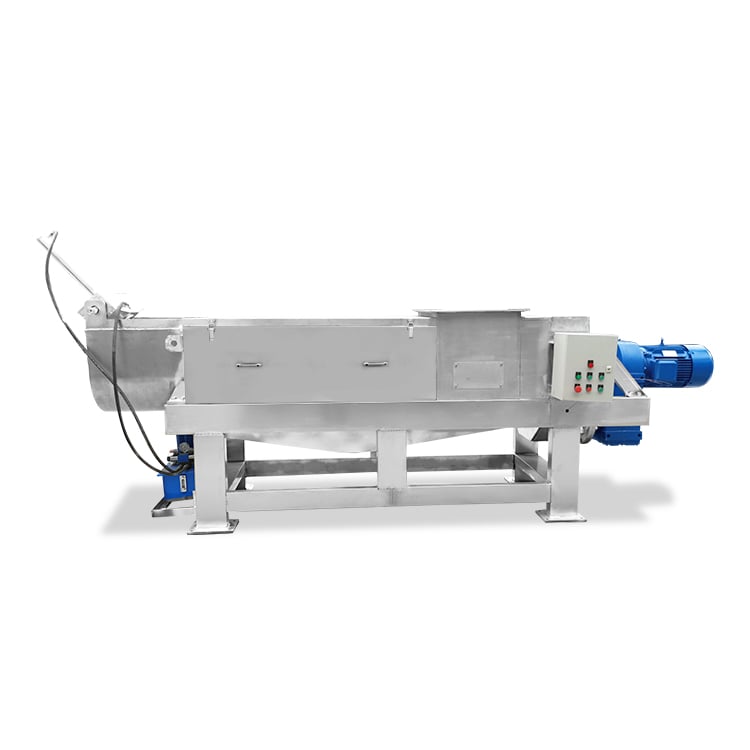

Single-screw press
Henan Tianzhong is a leading brand specializing in the manufacturing of dewatering screw press, solid-liquid separators, vegetable pulping machines, screw conveyors, and trash can lifters, etc.We are an integrated solution provider of dehydration and reduction of waste material in various industries,R&D,production and sales of complete sets of fine filtration equipmenet.Choose our OEM/ODM services for a combination of speed and quality.Tianzhong Machinery,You First Option, Longlife Benefit!
Brief Description
The single-screw press is a single-screw continuous lower speed extruder with rotating speed of 12rpm.per minute.The parts in contact with material within this unit are all made of high-quality alkali-resistant stainless steel.The equipment uses conventional pressure feeding systems,spiral extrusion,screen cylinder extrusion ,and hydraulic blocking device at slag outlet,which is to achieve the separation of juice and solid.
The hydraulic system is powered by hydraulic fluid and he size of the outlet of the material is controlled by the piston rod,and the dry humidity of the slag can be controlled according to the requirements.
Working process
The single-screw press dehydrator is characterized by a solitary screw, which provides continuous dewatering and efficient shredding capabilities.The wet material is fed into the machine,and as the screw rotates slowly, it conveys the material towards the discharge end.By using force-feeding plate,it pushes the material forward and preventing it from adhering to the screw.
As the material is conveyed along the length of the screw, the pith gradually diminishes while the pressure increase.The liquid is then squeezed out through the screen. The separated liquid is collected for further processing, while the dewatered solid continues moving along the screw to the discharge end.
Technical Parameter
| Model | DY-5 | DY-10 | DY-15 | DY-20 | DY-30 | DY-50 |
| Feeding capacity | 3-5t/h | 8-10t/h | 12-15t/h | 17-20t/h | 25-30t/h | 40-50t/h |
| Power | 15kw | 18.5kw | 22kw | 30kw | 45kw | 55kw |
| Spiral diameter(mm) | 420mm | 500mm | 600mm | 630mm | 700mm | 870mm |
| Screen diameter(mm) | 430mm | 520mm | 620mm | 650mm | 720mm | 900mm |
| Rotating speed(r/min) | 5-12r/min | 5-12r/min | 5-12r/min | 5-12r/min | 5-12r/min | 5-12r/min |
| Hydraulic power(kw) | 1.5kw | 1.5kw | 1.5kw | 1.5kw | 2.2kw | 4kw |
| External dimensions | 4550*960*1500 | 5050*1100*1550 | 5600*1200*1650 | 5800*1300*1750 | 6500*1450*1950 | 7200*1530*2450 |
| Weight (t) | 2700kg | 3500kg | 4300kg | 5300kg | 6500kg | 9500kg |
Application
1.The single screw press has slow speed, large output, high pressure and high dehydration efficiency.
2.It is suitable for a variety of fiber-rich vegetables and fruits.
3.It is widely suitable for dehydration and reduction of fruit and vegetable,domestic waste,household waste.
4.It is suitable for dewatering and squeezing of various waste and residue chemical material.
