Shredder squeezer machine
Henan Tianzhong is a leading brand specializing in the manufacturing of dewatering screw press, solid-liquid separators, vegetable pulping machines, screw conveyors, and trash can lifters, etc.We are an integrated solution provider of dehydration and reduction of waste material in various industries,R&D,production and sales of complete sets of fine filtration equipmenet.Choose our OEM/ODM services for a combination of speed and quality.Tianzhong Machinery,You First Option, Longlife Benefit!
Brief Description

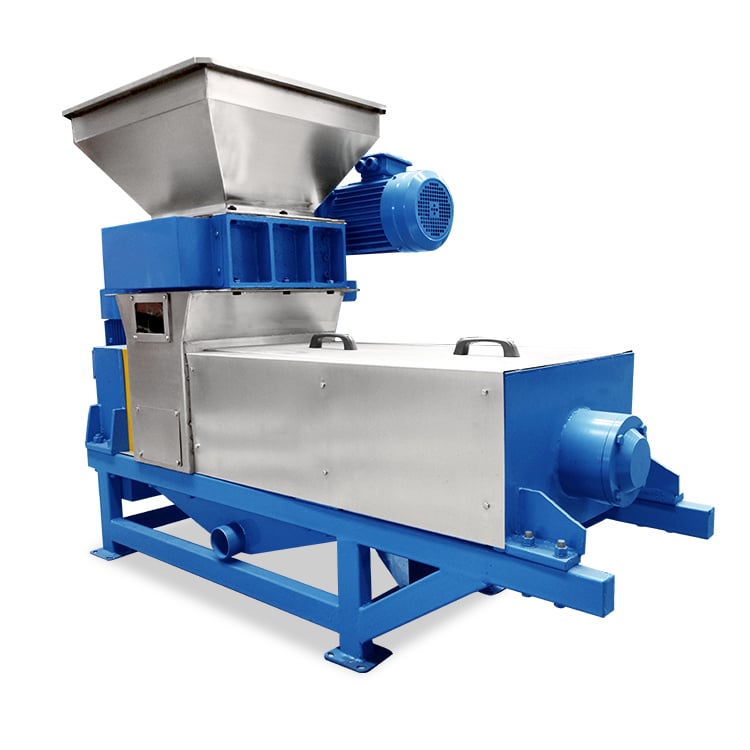

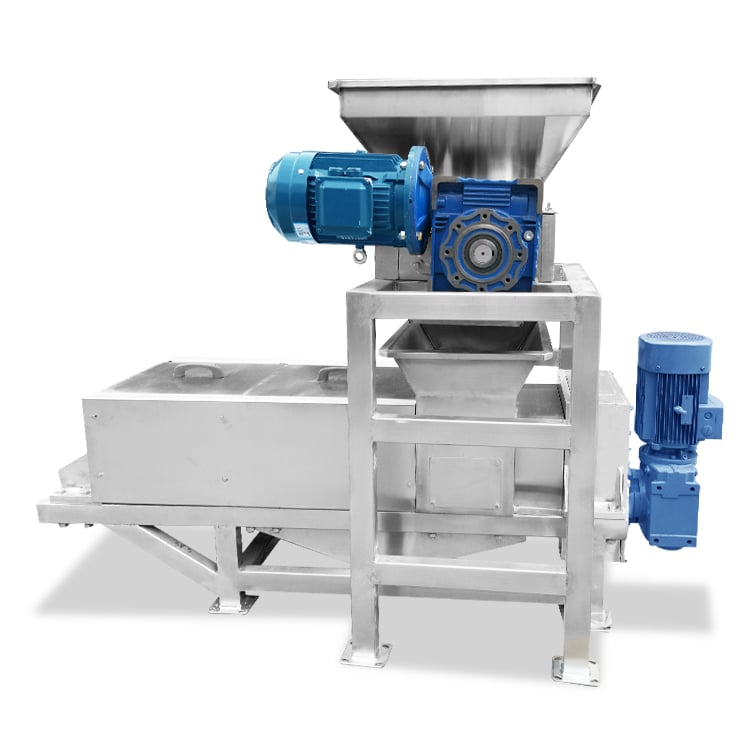

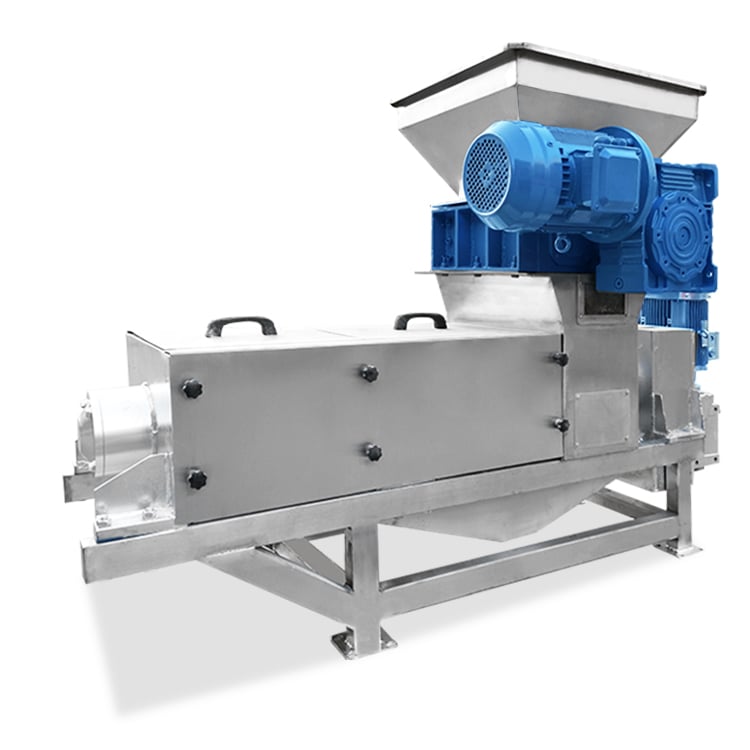

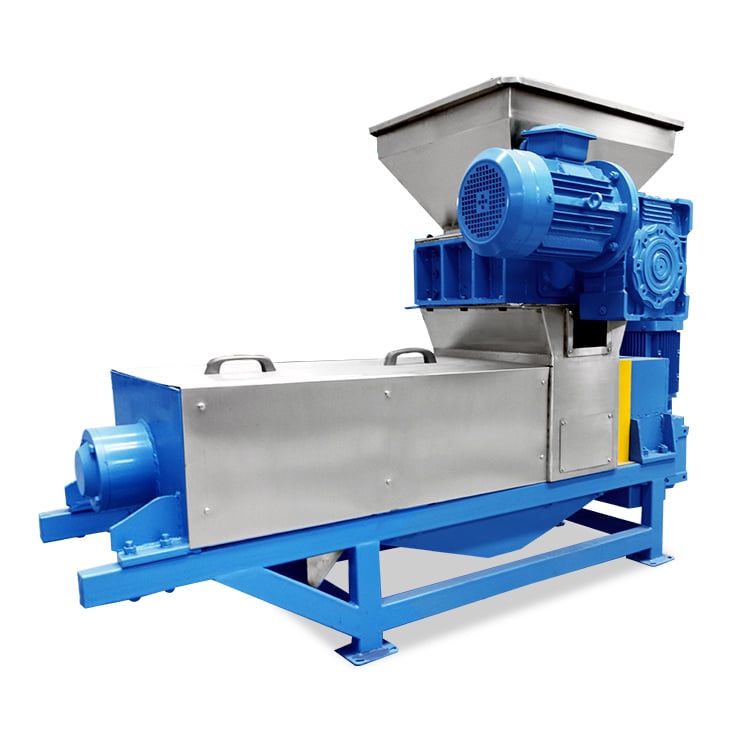

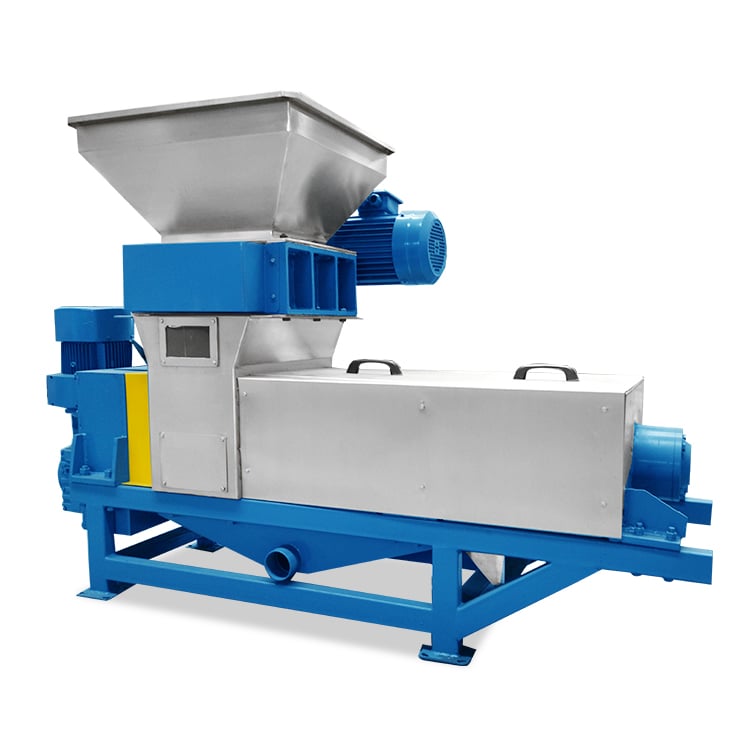

Shredder & screw press is the machine that integrate industrial shredder with dewatering scew press.The raw materials are first comminuted, after which they directly enter the pressing machine for the processing of squeezing and dehydration, thereby automatically accomplishing the functions of crushing, squeezing, dehydration, and slag disposal.
The hammer mill crusher and squeezer combo is suitable for various fruits and root vegetables.such as apples,pears,potatoes,and carrot.
The double-shaft shredder and squeezer combo is suitable for various leafy vegetable and various complex raw materials,such as fruit and vegetable waste,kitchen waste and domestic waste.
Shredder & screw press is designed to crusher the material before dewatering and extrusion,catering to the varying compositions of the customer’s feedstock,This approach not only realizes a high efficient dehydration but also diminishes the volume and conserves valuable resource.
Technical parameter :
Model | TZ-0.5 | TZ-1.5 | TZ-3 | TZ-5 | TZ-10 | TZ-15 |
Feeding capacity(T/H) | 0.2-0.5T | 1-1.5T | 2-3T | 3-5T | 8-10T | 12-15T |
Power | 3kw | 5.5kw | 7.5kw | 11kw | 18.5kw | 22kw |
Diameter of screw(mm) | 180mm | 260mm | 350mm | 420mm | 500mm | 600mm |
Speed | 12r/min | 12r/min | 12r/min | 12r/min | 12r/min | 12r/min |
Adjustment method | Spring adjustment | Spring adjustment | Spring adjustment | Hydraulic adjustment | Hydraulic adjustment | Hydraulic adjustment |
Mesh size(mm) | 1mm | 1mm | 1mm | 1mm | 1mm | 1mm |
(adjustable) | (adjustable) | (adjustable) | (adjustable) | (adjustable) | (adjustable) | |
Material | The parts in contact material of 304 Stainless steel,add fee can customized to be whole stainless steel | |||||
Voltage | 380V/220V | 380V/220V | 380V/220V | 380V/220V | 380V/220V | 380V/220V |
Weight | 40kg | 900kg | 1300kg | 2600kg | 3050kg | 4300kg |
Dimension(cm) | 180x55x92 | 220x80x12 | 31x90x130 | 358x100x147 | 374x120x165 | 550x130x165 |
Application
This machine is suitable for dehydration of different raw materials.such as fruit,vegetable,domestic waste,kitchen waste,distillers grains,chinese medicine residue,straw,Cassava residue etc.
